Gateway 4

Categories: , , , SKU: ERONOD040

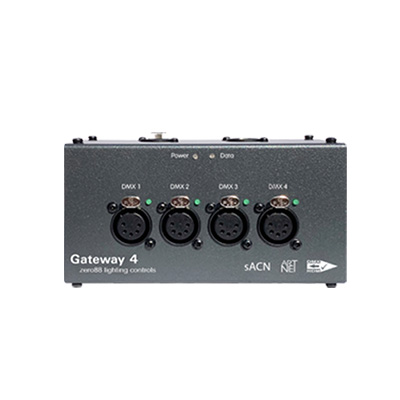

Gateway 4 provides flexible DMX / RDM data distribution, converting four universes of Ethernet (sACN or Art-Net) into DMX512/RDM. The unit can be desk mounted or safely secured to a vertical or horizontal bar by adding a standard clamp onto one of two m10 mounting positions.

Description

Gateway 4 is fully compatible with the latest protocols (sACN, Art-Net 4, LLRP, DMX & RDM), ensuring your distribution network is ready to meet your future demands. Gateway 4 is appropriate for permanent installations or as a flexible, adaptable rental & touring tool due to it’s compact, rugged and scratch-resistant metal design.

When combined with any ZerOS console, Gateway 4 provides on-board configuration from the console, for a truly integrated system. Alternatively, the unit can be configured through an internal web server or via optional control software. DHCP enables automatic IP addressing; static IP and LLRP negotiation are also supported.

The input is an EtherCON / RJ45 connector. The four outputs are protected against electrical faults. All connectors are Neutrik parts. Gateway 4 can be powered via “Power over Ethernet” (PoE) or from an external power supply (not included).

Gateway 4 is ideal for use alongside Splitter 8 and Gateway 8 to build a larger data distribution system.





ERONOD040 Gateway 4 datasheet.pdf    709.22 KB
