GigaCore 14 with PoE

Categories: , , , , , , SKU: LMXGIG015

A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.

Send an enquiry

Description

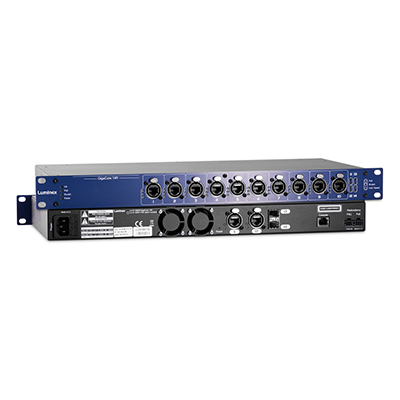

The GigaCore 14R is a Gigabit Ethernet switch designed to cope with the most demanding lighting and AV installations. The device offers a user-friendly experience with an interface that makes it easy for industry professionals to configure it effectively. The switch is fitted with two SFP cages and can support any compliant fiber transceiver, breaking the limit of the copper cable run. Two power backup ports at the rear of the unit make the switch a reliable Gigabit core of your network. The GigaCore 14R comes with a variety of industry-oriented features, providing a user-friendly solution and reducing setup time.

Tailored for AV industry
Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
Easy set-up
Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
Touring approved
Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
Converged networking
Transfer multiple protocols (Dante™, RAVENNA/AES67®, ArtNet, MANet 1&2, sACN,Q-LAN …)
Ultimate link redundancy
RLinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.
PoE+
Don’t worry about power plugs anymore. PoE+ powers-up all compatible devices within the network.



Product Features:

  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table:
  • Address learning / Aging: Self-learning, Auto aging
  • Switching throughput: 32Gbps
  • Jumbo frames: MTU up to 9600
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)


GigaCore_14R_User_Manual-rev-2.8.7.pdf    5.78 MB
Product-specification-sheet-GigaCore-v4.0.0-1.pdf    161.15 KB
