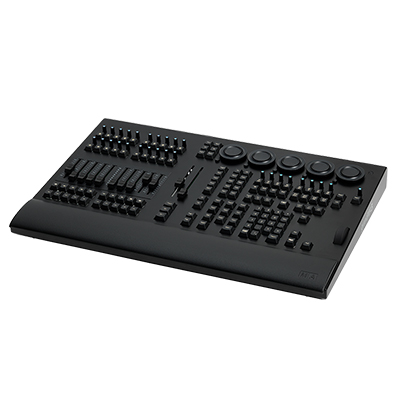

grandMA3 Command Wing XT
An onPC wing with real console feeling – you think that is impossible? Take a look at the grandMA3 onPC command wing XT! Experience the grandMA3 onPC console solution with the pre-installed onPC software on the built-in MA motherboard. Just connect a touch screen monitor and you can control 4,096 parameters right on the spot!
Downloads
Datasheets
Product Video
Case Studies
Related Products
-
MA Network Switch: Performance and simplicity for your lighting networkSetting up a lighting network can be a complex and time consuming process. Especially when integrating different products using various lighting protocols. Even if a lighting network seems to be working, how can you guarantee that optimum performance and stability is achieved? Control from console to DMX distribution MA Lighting presents the perfect solution: With the brand new MA Network Switch, the setup time and the level of complexity to achieve an optimised lighting network is radically reduced. MA now offers the complete lighting control solution from MA console, via MA Network Switch and its network infrastructure to MA DMX distribution. In combination with the MA consoles and additional MA networking devices the MA Network Switch provides a very easy to use solution, even for complex lighting systems. Incorporating the hardware and software features MA is famous for. Simplicity The MA Network Switch is designed to simplify the set-up and management of today’s lighting networks. A simple and intuitive web browser based user interface allows network optimisation with a few easy steps. There is no need for specific networking knowledge. Standard lighting terminology is used allowing most common lighting protocols to be filtered via a web interface designed specifically for lighting technicians. Operational procedures can be standardised with these protocol filtering presets. Experienced network engineers can also access advanced functionality in the tiered interface if needed. This ensures better production preparation while on-site solutions are available via a simple preset assignment. True MA Lighting quality & support Rock solid MA hardware: the MA Network Switch is housed in a typically robust 1RU chassis, with colour coded group indicators front and rear. It provides a local display for port status, applied filters and recognised MA equipment. All connectors are Gigabit Ethernet via Neutrik etherCON plus two optional heavy duty fibre optic connectors from Neutrik or Fiberfox. Part of the DNA of MA Lighting is the industry leading MA technical support. Now, MA networks from console via switch to DMX distribution are fully supported. Outstanding performance The MA Network Switch ensures maximum performance by full throughput of all Gigabit ports and a bandwidth measurement system available via the front display to monitor the MA Network Switch performance. The grouping for easy organisation of the lighting network is fully adjustable to ensure smooth integration into existing fixed installation networking infrastructures. Networking The MA Network Switch is compliant with IEEE 802.3ab Gigabit Ethernet and can be merged into existing Ethernet networking infrastructures. The ability to define port filtering with the common entertainment protocols combined with standard Ethernet protocols like IGMP and RSTP allows the switch to perform best in fixed installation as well as in temporary installations. This MA Network Switch includes two Mini-GBICs installed inside the internal SFP-cages and connected to two Neutrik opticalCON fibre optic connectors at the rearside of the switch, ready for mainly (but not limited to) touring applications. The fibre optic connection is a multimode (MM) connection via a opticalCON Duo Advanced connector. Read more -
MA Lighting presents the perfect solution : With the brand new MA Network Switch, the setup time and the level of complexity to achieve an optimised lighting network is radically reduced. MA now offers the complete lighting control solution from MA console, via MA Network Switch and its network infrastructure to MA DMX distribution.Features of the MA Network Switch: • Simplicity: easy set-up and management • MA DNA: industry leading support and reliability • Designed for lighting technicians: standard lighting industry protocols can be filtered • Performance: full throughput of all Gigabit ports • Networking: compliant with IEEE 802.3ab Gigabit Ethernet Read more -
The grandMA3 light Control Room Version (CRV) console is the work-horse of the range but supplied without the monitor wing. Designed for use in control rooms where sightlines can be challenging, the grandMA3 light CRV features 2 additional external monitor ports to facilitate the convenient location of external 3rd party touchscreens without compromising the grandMA3 light console functionality. Featuring 60 physical playbacks, 16 assignable x-keys and a dedicated master playback section the grandMA3 light CRV console provides plenty of playback options. The two letterbox screens are context sensitive and dedicated to providing feedback and options for the grandMA3 light CRV console playback and encoder hardware. The grandMA3 light CRV console includes 16,384 control parameters as standard, ensuring that it is the perfect base platform for the world’s most prestigious entertainment lighting applications. The system size is scalable to 250,000 parameters with the use of additional grandMA3 processing units. The grandMA3 light CRV is compatible with grandMA2 and grandMA3 software. The hardware is ergonomically optimized and can be considered a silent version by default. The grandMA3 lighting control consoles offer a fresh user interface with an optimized command section for intuitive and fast access. The grandMA3 consoles features dual encoders, which provide users with intuitive control of additional features and functions. Feature-mapping of the dual encoders is customizable, facilitating ease of use and faster programming. Long-life motorized playback faders are used across the entire grandMA3 console range. The faders incorporate a color-changing light pipe. All playbacks have direct access to button pushes as well as intensity and timing changes thanks to the new rotary RGB backlit encoders. The grandMA3 operating system is completely new and has been designed to feel more welcoming to fresh converts without alienating existing grandMA programmers. Extensive user feedback has been incorporated to ensure the new functionality address’ the real world needs of the MA family. The fundamental syntax of the grandMA2 has been preserved and extended to facilitate the new functionality. The grandMA3 software has an elegant new system-architecture incorporating new fixture, feature and effects-handling at it’s very heart. These ground-breaking concepts from top industry visionaries, are presented within a refined user interface, and are designed to make practical tasks more intuitive. Selecting fixtures, adjusting values, storing presets and playing back cues should all feel familiar, but improved in many details of the process. Better overview, faster access and more accurate information will create an improved user experience in programming and busking a show. Fixture information is now generic and allows simpler sharing of programmed data between fixtures. We also support the new GDTF (General Device Type Format) natively, allowing fixture manufactures to ensure their own fixtures are controlled as intended. Read more -
When we talk about onPC solutions, we talk about mobility, flexibility and affordable prices – all combined in the grandMA3 onPC command wing! It is your mobile control solution for the grandMA3 onPC software. You have a computer or laptop with the grandMA3 onPC software installed? Then simply connect your onPC wing via USB and you are ready for programming. The command area looks the same as on the grandMA3 consoles including the five dual-encoders and 40 separate playbacks to directly control 4,096 parameters. You have three DMX ports available, and you can use Ethernet protocols to send DMX data. On the rear panel you find all inputs and outputs of a grandMA3 console. MIDI, timecode and remote control are directly available. So you get the real console feeling! The grandMA3 onPC command wing is designed as a powerful control solution on tour, for smaller theaters, shows, clubs or houses of worship. Also, if you are looking for a clever backup solution for your grandMA3 system or if you need a small pre-programming station, the grandMA3 onPC command wing will be the perfect choice. Features onPC wing for real-time control of 4,096 parameters in combination with grandMA3 onPC Command section similar to grandMA3 compact layout 29 rotary RGB backlit encoder 5 dual encoders 10 motorised 60 mm faders 40 separate playbacks 16 assignable x-keys 2 motorised A/B faders 100 mm 1 Level-Wheel Individually backlit and dimmable silent (clickless) keys Just connect via USB to any PC running grandMA3 onPC Read more
