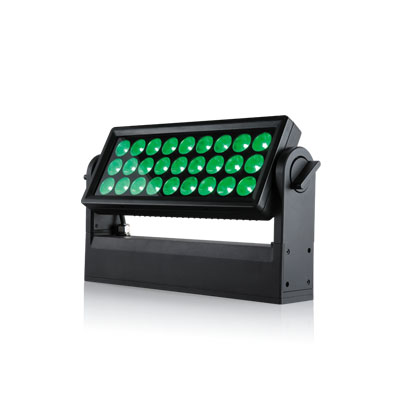

LED Fusion Wash Q XXVII (27)

Categories: , , , , , SKU: LEDWSH270 Tag:

The LED Fusion wash 27 is an outdoor rated IP65 RGBW wash light with snap-on beam shaping filters for precise control of light output.


LED Fusion Wash Q XXVII (27) features:

  • IP65-rated wash light
  • 27 x 10W RGBW LEDs deliver 12K lumens of perfectly blended colour
  • Interchangeable beam shaping filters for precise control of light output
  • 3 zone independent control of horizontal sections
  • Silent operation suitable for indoor studio as well as outdoor use
  • Selectable LED modulation for flicker-free output from 600Hz ~ 25kHz
  • Ultra-linear dimming technology for flawless colour mixing
  • Indestructible diecast body and tempered glass front panel
  • Virtual colour wheel and white presets from 1800K~8000K
  • Four selectable dimmer curve modes
  • Quick-Lock (Omega) bracket for easy installation
  • Available optics: 8°, 15°, 25°, 45°
  • Included accessories: 60° Diffuser, Omega bracket, saftey cable for diffuser
  • Optional accessories: Barndoors, diffusers 20°/30°/50°/60°/60×10°/60×30°frost
  • RDM, DMX and W-DMX wireless control
Lamp Source 27 x 10W RGBW LEDs
Beam Angle 15° (with included filter)
Field Angle 28° (with included filter)
Output 12000 lm
Key Features
Tilt angle +/- 90°(manual)
Colour Mixing RGBW
Strobe 0-30 Hz
Dimming 4 dimming curve modes
Protocol RDM, DMX and W-DMX
DMX Channels 4 / 6 / 10 / 12
Display OLED function menu with 4 touch buttons
Mains 100V-240VAC,  50/60 Hz
Consumption 268W
Power connections PowerCon true IP65 In/Out
Data connections IP65 XLR In/Out
Power Linking up to 7 units @230V / up to 3 units @120V
Material Diecast aluminum, tempered glass
Finish Matte black


IP rating IP65


Cooling Passive (fanless)
Dimensions 454 x 153 x 269 mm
Weight 9 KG
