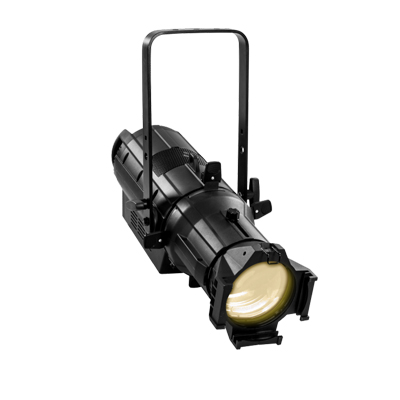

LED Profile VW

The LED Profile VW is the highest-output tunable white LED profi­le in its class.


While output and performance are exceptional, its functionality and features are familiar, with a design that allows for compatibility with a wide range of industry-standard accessories. Built to withstand the rigours of serious professional use:

  • Innovative six-colour mixable LED light source with exquisite colour rendering (up to CRI 92)
  • Variable white colour temp presets from 2800K ~ 8000K
  • Adjustable +/- green hue ­fine tuning
  • Independent control of discrete source colours (red, orange, green, royal blue, blue, lime)
  • Flawless 16-bit dimming with selection of four dimming curves
  • Flicker-free output with selectable PWM frequencies for worry-free video
  • Crisp gobo image projection, even at close range
  • Extremely ‑flat fi­eld projection
  • Quiet operation suitable for studio use (two selectable fan modes)
  • Power linking (PowerCon In/Out)
  • Rugged die-cast body and low-maintenance design
  • Manual control via onboard menu
  • DMX control
  • Available ­xed lens tubes: 14° – 19° – 26° – 36° – 50° (not included)
  • Available zoom lens tubes: 15°-30° or 25°-50° (not included)
  • Also available with Gobo holder (LEDPRO152) which suits B size Gobos.


ES-RC-L100 8 unit profile case

LEDPRO130 - LED Profile VW MA Fixture Files.zip    9.61 KB
LEDPRO132 - LED Profile VW Datasheet.pdf    636.92 KB
LEDPRO132 - LED Profile VW Manual.pdf    3.67 MB
