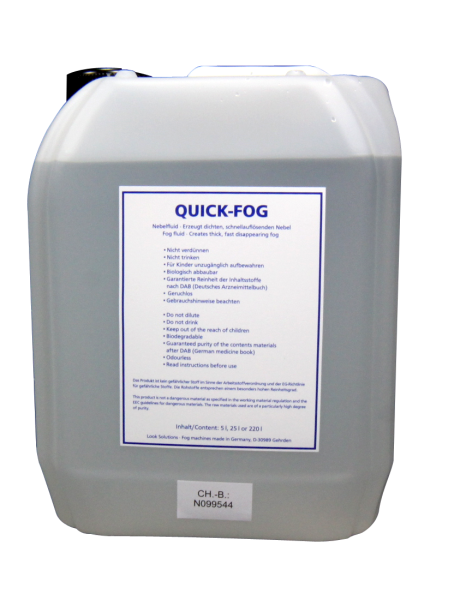

Look Quick Fog Juice 5L
Downloads
Datasheets
Related Products
-
The Viper 2.6 is a very powerful fog generator. It unites the current digital technology with proven technique and power. Very powerful output, simple handling and the possibility to connect an external fan are the main new features of this machine.DMX 512 as standard The VIPER 2.6 can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs. The DMX start address can be adjusted and saved via the control panel. The machine can also be controlled with analog (0 – 10 V) via a lighting desk or via XLR-remote (option). This connection is done with 3pin-XLR-plugs. A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary. Internal timer With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %. Control panel The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt. Finest adjustments of the output Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 – 99%. Thus, any desired effect from a tiny fog-cloud to the thickest fog can be produced. This enables the VIPER 2.6 to be used in both small and large locations. Connector for external fan An external fan with max. 800 Watt can be connected to the VIPER 2.6. Once connected to the machine, the fan can also be adjusted via DMX. The machine then uses two following channels at the desk. Read more -
Use: Fog- and smoke simulation Chemical characteristic: Mixture of higher alcohols and water Ingredients: Contains no dangerous ingredients (See MSDS in downloads tab for more information)Information about the CLP regulations and Look Solutions fog and haze fluids: The CLP regulations for mixtures are valid from 01.06.2015 on. Look Solutions fog and haze fluids do not contain any of the listed ingredients. Especially none of our products contain Diethylenglycol, which is of great concern. All ingredients used in Look fluid are harmless, and there is no limited value in the air for any of them. Look Solutions products are not classfied under the new CLP regulations Read more -
The Cobra 3.1 is a powerful fog generator, that sets new Standards concerning noise and handling. The new Touchscreen makes the handling of the Cobra 3.1 easy and intuitive. Operation via Ethernet and RDM-features allow most exible use. The machine is supplied with a duct adaptor that also functions as a protection against contact. Features •230V only • New, extremely silent nozzle with its newly developed nozzle the machine works very silently. The noise level at full output is 82.5 dBA (in comparison: the Viper 2.6 with 2600 Watt generates at full output 100.5 dBA). The nozzle can be unscrewed and cleaned as needed. • Two pumps for constant output The use of two pumps ensures a very constant fog output at any pump level. Therefore the continuous output up to 30% pump level is regulated from one pump, levels from 31% to 100% are regulated by a second, more powerful pump. • New Touchscreen All adjustments can be made easily and intuitive via the big Touchscreen with simple menu navigation. • New controls Besides the stand-alone, analogue and DMX 512 control, the machine can also be operated via Ethernet (Artnet and sACN). • RDM-capable The Cobra 3.1 is equipped with the following RDM-features: — Status: Ready, Re-heating, Error messages (E-1, E-2 etc) — DMX-Patch — Temperature: Heating element, PCB — Adjusting the Personality — General Informations about the machine Newly developed, extremely silent nozzle constant, steady Output DMX, Ethernet, RDM Made in Germany • Finest adjustments of the output Digital technology enables fine adjustments of the pump. In steps of 1% the output can be adjusted from 0 – 100%. Thus, any desired effect – from a tiny fog cloud to the thickest continuous fog – can be produced. This allows an individual adaptation to the dimensions of the room. • Adjustable Pump characteristic Depending on the use of the Cobra 3.1 and the desired effect, the user can choose between four different pump characteristics: Impulse, Extended, Flood and Continuous. The output and fogging time varies depending on the choo- sen pump characteristic. • Adjustable Performance curve For nest adjustments of the pump from 0% – 30%. In these- pump levels, the performance curve can be regulated 5% up or down, if the same output is needed at several machines or the aging process influences the output. Thus, different fog amounts can be balanced. • Internal Timer With the internal timer, the fogging time can be adjusted in seconds, the wait time in minutes and the output in %. Once the timer is activated, the adjusted program will run until the timer is deactivated. •Working hours counter The Cobra 3.1 is equipped with a working hours counter, that saves heating and fogging durations. Liquid The following Look fog liquids are available for the Cobra 3.1: Quick-Fog (thick, quick disappearing fog liquid) Regular-Fog (thick, long-lasting fog liquid) Slow-Fog (thick, extremely long lasting fog liquid) Read more -
Read more
