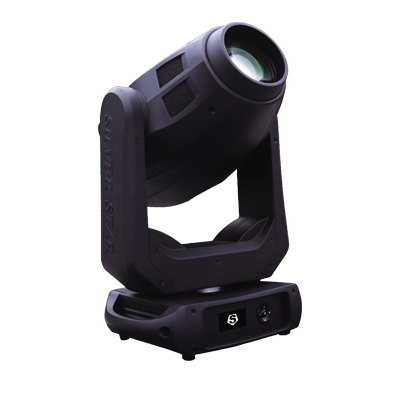

Pluto 350 moving head spot

The Pluto 350 is a professional LED moving head spot with a 5°-35°electronic zoom system and CMY.



Description

The Pluto 350 moving head spot features:

  • 350W
  • 18kg
  • Rapid & silent Pan & tilt movement
  • Electronic zoom 5°-35° with refined 16bit dimming
  • Smooth and precise CMY system
  • Linear CTO wheel: 3000K-8000K
  • (7+1) colour wheel
  • (12+1,1°,3°) fixed gobo wheel
  • (8+1) rotating glass gobo wheel
  • 2x 3D glass gobos
  • 4 facet prism
  • Frost
  • Iris
  • Power in: Artnet In/out
  • DMX 3pin/5pin In/out

Optical System
Lamp Source 350W module
Angle 5°-35°
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 450W
Driver Current 4A
Power Connection Power In and out
Signal socket 3 pin in and out, 5 pin in and out
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Forced Convection
Control DMX512, RDM, ARTNET
Display Onboard Control, custom Mode, 0-25Hz Strobe
Dimming 0-100% 16Bit
Con Personality STANDARD/20CHS, BASIC/22CHS
Special Pan/Tilt movement blackout, user-selectable pan/tilt ranges
Effect synthetic system
Rotating Gobo 8 Gobos+White,Gobo-flow effect, Gobo shake, Bi-directional rotation
Static Gobo 12 Gobos+White, Gobo-flow effect, Gobo shake
Colours CMY colour wheel (7 dichroic filters+ White Rainbow-flow effect)
Prism One piece of 4 Facet prism with bi-directional rotation, adjustable speed
Iris 5-100% linearly adjustable with macro
Focus Motorized linear focus
Zoom Motorized linear Zoom
Frost 1 Frost filter
Appearance
Size 359x249x596mm
Weight 18kg
Casing Flame-retardant plastic(V0)
Colour Black
Work Environment
Ambient Temp 0-45°
IP Rated IP20
