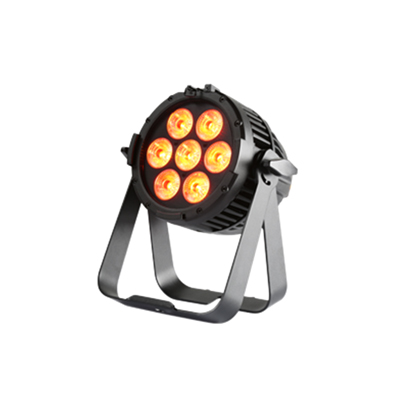

FusionPAR H VII

The new FusionPAR H VII is an outdoor-rated Hex-colour (6-in-one) RGBAW+UV LED washlight designed for professional touring and production with W-DMX receiver onboard.



Description

LED FusionPAR H VII features:

  • 7 x 10W RGBAW+UV LEDs
  • Perfect colour consistency in a compact package with extremely tight beam output
  • Selectable PWM frequencies for flicker-free output and worry-free video
  • Double mounting bracket allows the fixture to be flown or floor-mounted
  • Four selectable dimming curve modes (off, fast, medium, slow)
  • Patented structural design delivers superior passive cooling
  • Ultra-linear dimming technology for flawless colour mixing
  • Advanced colour management with an adjustable white balance
  • Silent operation suitable for broadcast environments
  • Indestructible diecast alloy body
  • Onboard colour presets and macros
  • High contrast OLED menu display
  • Password protected menu lock
  • Seetronic IP65 In/Out
  • DMX and W-DMX control

Barndoor code: LEDPAR077

Photometrics
Lamp Source 10W RGBAW+UV 6-in-1 LED
Beam Angle 22°
Field Angle 36°
Output 554 LUX @ 5 meters
Key Features
Colour Mixing RGBAW+UV
Strobe 0-30 Hz
Dimming 4 dimming curve modes
Control
Protocol DMX
DMX Channels 6 / 8 / 13
Built-in Programs Yes
Display OLED function menu with 4 touch buttons
Power
Mains 100V-240VAC,  50/60 Hz
Consumption 64W
Power connections Seetronic IP65 In/Out
Data connections Seetronic 5-pin In/Out
Housing
Material Aluminium
Finish Matte black outdoor rated finish



IP rating IP65



Thermal
Cooling Passive
Physical
Dimensions 240 x 136 x 286 mm
Weight 3.6 KG
