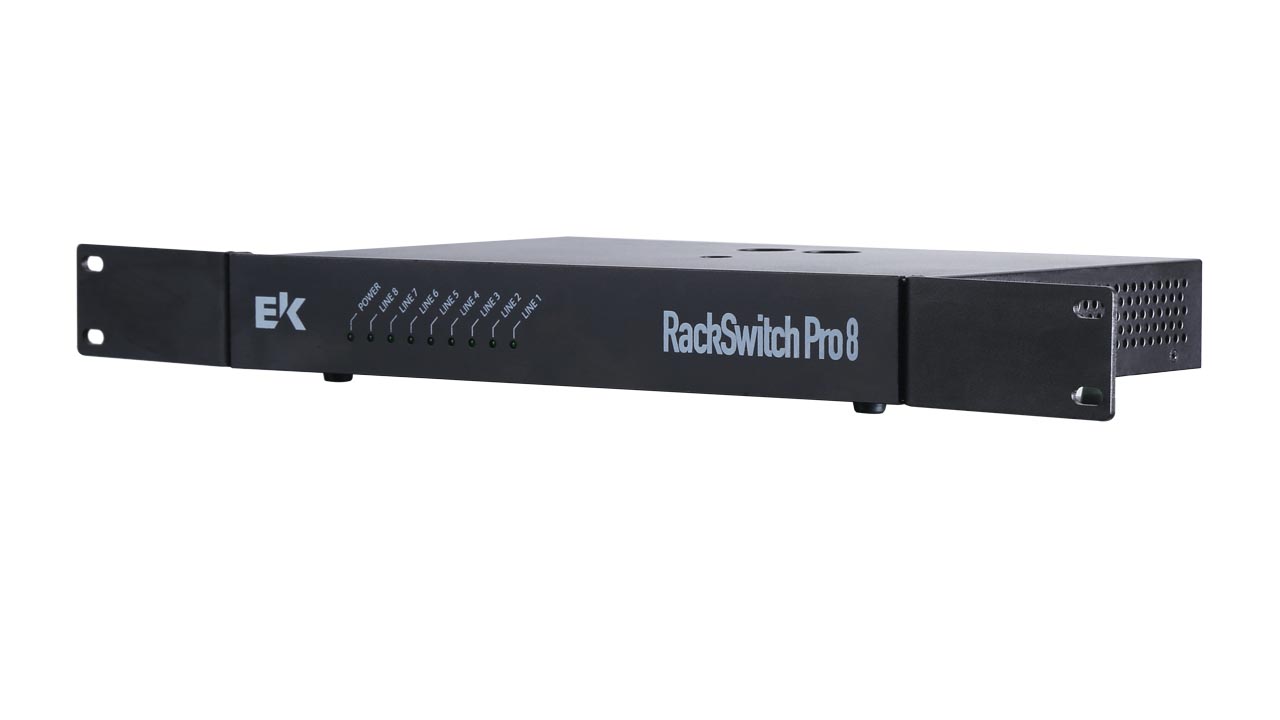

Rack Switch Pro 8

Categories: , , , , SKU: PSHCON241

8-port 1000Mbps switch for TCP/IP-based ethernet networks, including Art-Net and sACN



Description

It can be mounted on truss and also features removable rack-mount ears. With 8 etherCON ports allow for easy control routing, isolation, and amplification.

Protocol: Art-Net and sACN
Status indicators: Power, Link, Activity
Ports: 8 (all ports available as either input or output)
Power
Mains: 100V-240V 50/60 Hz
Consumption: 18W
I/O
Power connections: Neutrik PowerCon
Data connections: Amphenol XLRnet (EtherCON / RJ45 compatible)
Housing
Material: Steel
Finish: Matte black
IP rating: IP20
Mounting options
Rack: included L-brackets
Surface: included rubber feet
Flown: included rigging points for clamps and safety cable
Rackspace: 1U
Physical
Dimensions: 483 x 202 x 44 mm (standard 19″ form factor)
Weight: 2 KG
Misc / Options
Power Cord: Neutrik PowerCON® power cord (included)
Rack accessories L-brackets (2) (included)
