SLIMBAR Flat RGBW 100cm

Categories: , , , SKU: STUBAR211

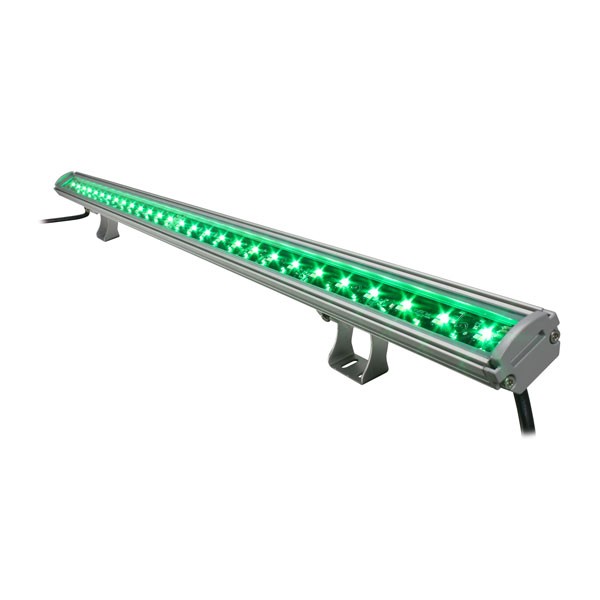

The SLIMBAR FLAT RGBW LED BAR is an ultra small form factor LED LINEAR BAR with IP67 rating protection.

Description

This kind of LED linear bar series is suitable for accent lighting.
Available in different light source,  RGBW with high-efficiency RGBW LEDs and has an IP 67 rating.

• SOURCE
n. 28×4 Red, Green, Blue, White mid power LEDs (n.14×4 for 50cm.)
Lumen: R 460, G 950, B 260, CW 1300 (R 230, G 475, B 130, CW 650 for 50cm.)
Total light power: 32W (16W for 50cm.)
 • OPTIC
– 120° no lenses
– optional: milk light diffuser
• TILT
Manual 160°
CONTROL
n.4 Channels 52VDC
• CONNECTIONS
n.2 connectors 5pin IP 67 (male-female) cable 40cm.
possibility to link up to 5 devices in chain
• SETUP AND CONFIGURATION
To drive SLIMBAR PILOT RGBW use SLIMBAR-F Pilot
• IP 67 RATING PROTECTION
• POWER CONSUMPTION
42W (21W for 50cm.)
POWER SUPPLY
52VDC – this fixture has to work with SLIMBAR-F Pilot
• PHYSICAL
WxDxH: 1000x35x40 mm (dimension of profile)
WxDxH: 500x35x40 mm (dimension of profile)
Weight: 1 Kg. or 0,5 Kg.
