Description
This type of compact LED bars with a wide range of optics and in RGBW or Monochromatic version, is suitable for accent lighting. Version with ON BOARD POWER SUPPLY. Available in 2 different measures, 100cm. and 50cm.

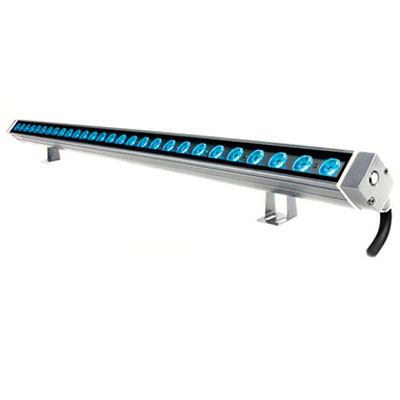

SLIMBAR PLUS POB RGBW
The SLIMBAR PLUS POB RGBW is an ultra small form factor LED LINEAR BAR with IP67 rating protection with on board Power Supply.
Enquiry about SLIMBAR PLUS POB RGBW
Enter the security code shown above
Lighting source
LED type: RGB-NW (white 4000K)
Number of LEDs: 28
Lumen MAX: 3250
Red lumen (lm): 800
Green lumen (lm):1200
Blu lumen (lm): 400
White lumen (lm): 1250
Optics
Lenses: 10°x30°,12°,24°,36°
Filters: None, f 12°x 60°
Control
Control type: Protocol USITT DMX512 – RDM
Functions and Setup
Functions: RDM/DRS
Power supply
Input range: 200 – 240 VAC; 47/63 Hz
Power (W): 60 W
Physical
Mounting systems: Surface,Truss (optional)
IP protection rating: IP 67
Sizes l x p x h (mm): 1005 x40 x 60 mm
Weight (Kgs): 2 Kg.
Colour finishing: Anodized light grey
Marine Grade treatment: None
Product Category: Linear Bar
