Volero Batten Wave

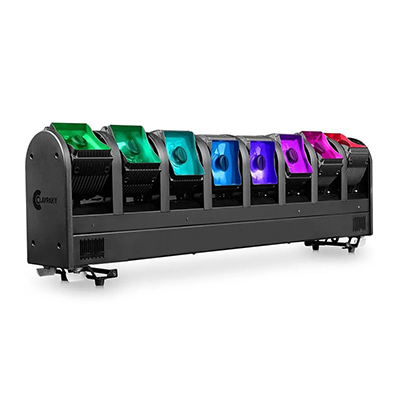

VOLERO WAVE, an incredible LED bar with original and innovative features, because it is made up of a system of 8 independent moving bodies.

Description

In fact, with Volero Wave you will have eight separate heads at your disposal, each independently capable of moving on a 220° TILT and giving rise to three-dimensional and volumetric projections that have never been seen before.

Each of these heads contains a brand-new mirror-based optical system combined with 40W RGBW LEDs, which express a higher light intensity than any of the LED bars currently on the market. The innovative concept behind Volero Wave, as well as the main challenge for the Claypaky R&D team, was to be able to move the entire light source on its axis, thus preserving the same intensity of the light flux in any position of the tilt range.

The beams always appear extremely sharp and collimated, parallel to each other thanks to the 2.9° projection angle. The synchronized movement produces an impressive wave of light, all the more overwhelming the more Volero Wave fixtures are seamlessly connected to each other.

Claypaky has designed a system that would allow the Volero Waves to be aligned with each other with extreme precision.  They are easily set up and mounted on the truss to create the “wave effect”. Mounted on the Claypaky Panify, they even add an endless PAN rotation at variable speed, making Volero Wave the most dynamic light effect fixture on the market.

Volero Wave adopts all the most important functions that characterize a product for first-class spectacular effects.  We have the pixel mapping for the control of each parameter for each single LED pixel and the exclusive Advanced Layers Management, which allows the operator to use simultaneously three levels of effects.

Volero Wave is a totally new lighting effect that adds a distinctive trait to any lighting design. It offers the lighting designer the power to create truly original and three-dimensional light scenes within television and film productions, musicals, live events, touring and any show that you want to stand out. It is a must see product.

Product Features:

  • Light source: 8x40W RGBW Osram LEDs (8600K)
  • 8 single pixels with possibility of pixel mapping
  • 2.9° beam angle
  • Separate 220° Tilt for each single cell
  • No loss of output at any angle of projection
  • Working in any position
  • Advanced Layers Management (Background Color – Internal Shape – Pixel Mapping)
  • Linear 16 bit CTC 2500-8000K
  • Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
  • Perfect rendering of the light beam though camera
  • Top hat on every single LED for clean, smudge-free projection
  • Electronic linear dimmer, 24 bit
  • Electronic shutter and strobe
  • Personalities: 4 modes with 23/24/29/32 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet switch: RJ45 IN/OUT
  • Power connector: PowerCon True1 IP65 IN/OUT
  • Built In Web Server
  • Max power consumption: 400 VA
  • CloudIO Ready: fully compatible with CloudIO
  • Possibility of mounting on Panify for volumetric projections
  • Accessories: 1°/2°/3.5° optional frost filters applicable with magnet to each single LED pixel
  • Weight: 20,8Kg (46 lbs)
  • Dimensions: 1000x329x182mm (39,37×12,95×7,16 in)

LIGHT SOURCE

8 Each 40W RGBW LED Engine
LED Colour Temperature: 8600K
LED Life Expectancy: 50000 Hours L70*
* Factors such as of use and environment can affect LED life

PHOTOMETRIC DATA
Zoom: 2.9° (Fixed Aperture)
292 Lumens (single pixel – integrating sphere)
Front lenses (8 Each): 86 x114mm

NOISE LEVEL
Standard mode: 41.8 dBA

CONTROL and CONNECTIONS
Personalities: 4
Modes: 23/24/29/32 Control Channels
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM Connectors: Locking 5 pin XLR IN/THRU
Ethernet Switch: RJ45 IN/OUT
Power Connector: Power Con True1 IN/OUT
Built In Web Server

DYNAMIC EFFECTS
Colours:
RGBW Colour Mixing 16 bit
Linear 16bit CTC 2500 – 8000K
Movement:
Tilt 220° (each module can move independently)
Accuracy ±0.08° (Range 0.16°)
Smooth & Fast Speed Selectable by Function Channel
Dimmer/Shutter:
High Resolution Electronic Dimmer – 24-bit
High Speed Electronic Shutter and Strobe

HARDWARE and SOFTWARE
Long Life Self-charging Battery
Display Graphic LCD backlit Monochrome Display
Firmware Upload from Another Fixture
Firmware Upgrade via Web Server or CloudIO
Diagnostics
DMX Monitoring
Remote Access through RDM
CloudIO Compatible

HOUSING
Aluminum and Steel Structure with Plastic covers
IP20 Rated

WORKING POSITION
Operates in any Position
Hanging System: Supplied with Fast-lock Omega Brackets (1/4 turn)

ELECTRICAL
Operating Voltage: 100-240V, 50/60 Hz – In/Out Max 4(2) fixtures @ 200-240Vac (@ 100-120Vac)
Max Power Consumption: 400VA
Max Power Output: 1600VA (for connecting fixture in daisy-chain)
Power Supply: Electronic Auto Ranging with active PFC

THERMAL SPECIFICATION
Operating Temperature 40°C (104°F)
Minimum Temperature -10°C (14°F)
Maximum Temperature of 60°C (140°F)
Total Heat Dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%

SAFETY SPECS
Minimum Distance from Flammable Materials 0.2 meters (8”)
Thermally Protected Power Supply (from overheating or cooling failure)
Forced Ventilation Axial Fans

COMPLIANCE
CE: Conforms to the European Directives
UKCA: Conforms to UK Regulations
cETLus Listed

PACKAGING
Carton Box + Polystyrene
Carton Box + Foam shell
Flight Case + Foam Shell (2 position)

WEIGHT – SIZE
20.8 Kg (46 lbs)
1000x329x182mm

ACCESSORIES
Omega Brackets: 2x 415102-801 (included)
PowerConTrue1 IP65: CON03O (included)

Optional accessories:
Power Cord: CAB0K1-802 (optional)
Foam Shell: F21330-001 (optional)
Flight Case (2 pos.): CF1015 (optional)
Safety Chain: 105041-003 (optional)
Frost Lens Kit 1°: CA30090001A2 (optional)
Frost Lens Kit 2°: CA30090001B2 (optional)
Frost Lens kit 3.5°: CA30090001C2 (optional)
Panify Long Bracket: CA3023000102 (optional)
Clamp: C21070 (optional)
