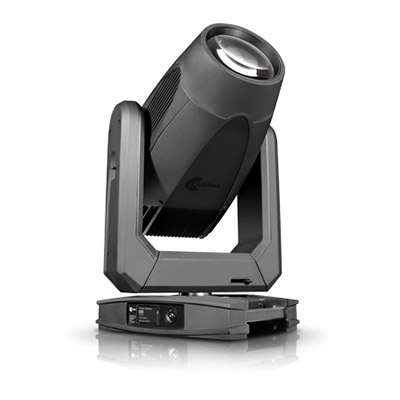

Sinfonya Profile 600

Theatres are demanding applications that require extremely low noise operation, very high quality of light and control along with precision of re-positioning.

Description

We are now delighted to introduce the first of a brand-new family of LED fixtures designed and manufactured exclusively for the Theatre market.
The new SINFONYA series from Claypaky addresses all the special needs and provides brand new levels of performance that were simply not possible before.
SINFONYA PROFILE 600 is stylish, and packed full of technology. What makes Sinfonya different is its excellent core technology that offers endless possibilities for theatre designers thanks to a wide variety of features specifically developed for the theatrical productions.



Product Features:

  • Light Source: 600W RGBAL LED Engine
  • CRI: up to 95
  • 12,050 Lumen Output (in integrating sphere)
  • Proprietary, High-efficiency, new optical system
  • 160-millimeter diameter front lens, with high quality tempered glass lenses
  • 5°- 60° motorized linear zoom
  • R-G-B-A-L colour control
  • 2500K to 8500K virtual CTO
  • Calibration Syncing for matching the colour temperature to other fixtures
  • Digital colour filters
  • Framing System on 2 focal planes: 4 blades with +/- 45° rotation of the full system
  • ACCUFRAME™: 40 times more precise than traditional framing systems
  • “Total Curtain” effect allowing the full blackout with each single blade
  • Triangular shapes
  • 6 HD interchangeable rotating gobos
  • New frost system (LINEGUARD), using two pairs of blades instead of two individual ones
  • Heavy frost 5° for wash effect
  • Light frost 1° for soft diffusion (interchangeable)
  • Animation wheel
  • 4-facet prism with rotation in both direction at variable speed
  • 16-blade Motorized iris
  • 24-bit digital dimmer with 4 user-selectable dimming curves
  • Digital stop-strobe effect
  • Absolute Position for the advanced Pan & Tilt Control
  • Advanced firmware for a max. performance and light output control
  • Personalities: three modes with 43/49/59 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • Optional Wireless DMX system (Lumen Radio)
  • CloudIO Ready: fully compatible with CloudIO
  • Operating Voltage: 100-240V, 50/60 Hz
  • Max Power consumption: 770 VA
  • TONEDOWN™ for a low noise operation (27dB)
  • Selectable fan options, DMX controlled
  • New housing and external design
  • 36.8 Kg (81.1 lbs)
  • 285x415mm (base dimension) – 796mm with vertical head (h)

POWER SUPPLIES

  • Operating Voltage: 100-240V, 50/60 Hz – In/Out Max 1 fixture (2000VA)
  • Power Supply: Electronic auto range with active PFC

INPUT POWER

  • Max Power consumption: 770 VA

LIGHT SOURCE TYPE

  • 600W RGBAL LED Engine
  • CRI: Up to 95
  • Colour Temperature: 2500 to 8500 K
  • LED life expectancy: 40000Hrs L70*
  • *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 5°- 60°
  • 12050 Lumen Output (Integrating Sphere)
  • Front lens diameter: 160mm
  • High efficiency optical system

NOISE LEVEL

  • FAN channel: able to control linearly the speed of the FANS
  • – Full Output @27dbA (20° ambient temperature)
  • – Full Output @35dbA (30° ambient temperature)
  • – Fanless modality with reduced output

CONTROL and CONNECTIONS

  • Personalities: Three modes with 43/50/58 control channels
  • Optional Wireless DMX system (Lumen Radio)
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Colours:
    – RGBAL control
    – Virtual CTO
    – Digital filters
  • Framing system:
    – 4 blades with +/- 45° rotation of the full system, 2 focal planes
    – “Total Curtain” effect allowing the full blackout with each single blade
  • Gobos:
    – 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
    – Ext diam. 32.9 mm
    – Image diam. 22 mm
    – Thickness 1.1 mm
  • Frost:
    – Light frost 1° for soft diffusion (interchangeable)
    – Heavy frost 5° for wash effect (fixed)
  • Rotating Effects
    – Aluminum animation wheel with continuous rotation in both direction at variable speed
    – 4-facet prism with rotation in both directions at variable speed
  • Iris:
    – 16 blade motorized with variable pulse and random effects
  • Movement:
    – Tilt: 270° – 16bit
    – Pan: 540° – 16bit
    – Accuracy: Resolution ± 0.06° (Range 0.12°)
    – Absolute position
    – Automatic repositioning
    – Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    – Motorized Zoom and Focus
  • Dimmer/Shutter:
    – High resolution electronic Dimmer – 24 bit, 4 curves
    – High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

THERMAL SPECIFICATION

  • Max ambient temperature 40°C (104°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 40°C (104°F)
  • Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 2 meters (6’ 7”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • cETLus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 position)

WEIGHT – SIZE

  • 36,8 Kg (81.1 lbs)
  • 293x417mm (base dimension) – 796mm with vertical head (h)
  • Distance between two fixtures 700mm

ACCESSORIES

  • Omega clamps: 2×183102/805 (included)
  • ETL Power cord 1.5mt. (bare end with IP65 PowerConTrue1 connector): CAB0K1/802 (included)
  • Top Hat: CA3019000102 (included)
  • Foam shell: F21327/001 (optional)
  • Flight case (2 pos.): CF1012 (optional)
  • Safety Chain: 105041/001 (optional)
  • Frost filter (10°): CA3020000102 (optional)
  • Gel/Filter Holder: CA3022000102 (optional)
  • Handle: CA3021000102 (optional)
