Zonda 3 FX

Categories: , , , , SKU: AYRZON033

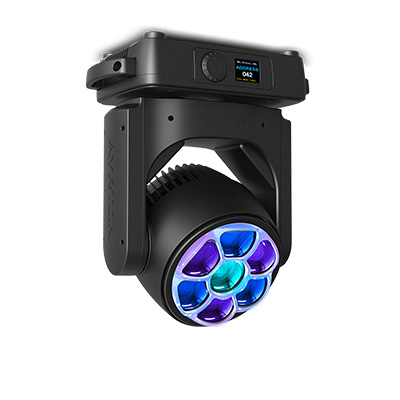

ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices.

Description

Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.

It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity.



OPTICS

  • 2 elements 14:1 zoom high-resolution optic system
  • Beam aperture: 4° to 56°
  • Fast motorised linear zoom
  • 7 truncated edges 50 mm frontal lenses
  • 170 mm front lens cluster

LIGHT SOURCE

  • 7 x 1,000 lumens RGBW High-Power LED sources
  • Total luminaire output: up to 5,200 lumens
  • CRI: up to 86
  • Rated life: L70: up to 40,000 hours
  • Flicker free sources management, suitable for TV applications and all video recorded events

MOVEMENT

  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
  • PAN and TILT automatic repositioning
  • Moving-head range: infinite pan & tilt rotation

COLOURS

  • Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
  • Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
  • 4.29 billion colours (8-bit resolution)
  • Virtual colour wheel, including most usuals white colour temperature presets

EFFECTS

  • 2D & 3D graphical effects capabilities
  • Effects can be coupled with beam, wash or matrix applications
  • Built-in pattern effects with speed and fade controls for scenic applications
  • Individual control of each pixels
  • LiquidEffectTM

DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • ethercon RJ45 IN / OUT connectors for ArtNet™ connection
  • powerCON TRUE1 IN / OUT connectors for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 26 to 79 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 350 W maximum

COOLING SYSTEM

  • Advanced cooling system
  • Self adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable auto, stage & studio ventilation modes
  • Safety protection against temperatures excesses

HOUSING

  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

INSTALLATION

  • Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
  • Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 1.0 m (3.28 ft)

COMPLIANCE
EU (EMC & LVD)

  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU

US (Safety & EMC)

  • UL 1573
  • FCC Part 15, Subpart B: 2018

SIZE

  • Product: 365 x 404 x 233 mm (l x h x d)
  • Flight-case foam: 420 x 438 x 280 mm (l x h x d)

WEIGHT

  • Product: 11.1 kg


AYRZON033 Zonda 3 wash FX Manual.pdf    1.63 MB
