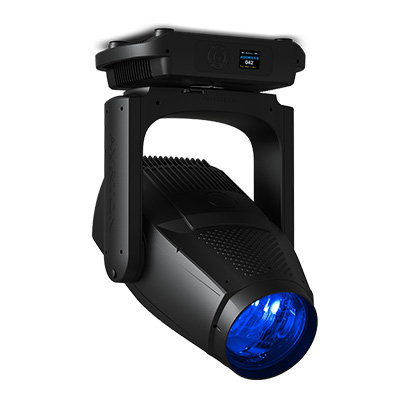

Domino LT IP65

Categories: , , , , , , SKU: AYRDOM102

DOMINO LT is the first all-terrain LED luminaire in the « LT » (Long Throw) range designed for intensive outdoor use in long-distance applications requiring high precision.

Enquiry about Domino LT IP65

Enter the security code shown above

Description

To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL” 225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. DOMINO LT was developed to cope with the most extreme conditions, able to acclimate to all types of environments and endure rapid climate change. For this purpose, DOMINO LT has borrowed from the style and minimalist design of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total accessibility to the luminaire’s internal functions. With its new die-cast aluminium frame, the luminaire uses the same base, reducing its visual footprint to a minimum. For greater efficiency, DOMINO LT has a highly effective next-generation, oversized cooling system fitted with six submersible fans outside its weatherproof enclosure.

DOMINO LT adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours (patent pending) and a triple corrector for variable colour temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolour effects. DOMINO LT is a unique luminaire designed to face the most extreme conditions… It is the ultimate tool for stadiums and large arenas.

Accessories:

ES-RC-L114 Single unit road case

OPTICS

  • 13-element 15:1 zoom high-resolution optic system
  • Beam aperture: 3.5° to 53°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 225 mm frontal lens for greater performance

LIGHT SOURCE

  • 75,000 lumens 8200 K white light engine
  • Total luminaire output: up to 51,000 lumens (integrating sphere measurement, Auto Fan Mode)
  • Colour temperature output: 6700 K
  • CRI: greater than 70
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

  • Highly accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving-head range: 540° (pan), 270° (tilt)

COLOURS

  • Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
  • Variable CTB colour temperature correction
  • Variable CTO colour temperature correction
  • Variable CTP colour temperature correction
  • Fixed colour wheel with six complementary colours

GOBOS

  • Two indexable rotating gobo wheels with seven high-precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Gobo diameter: 30.0 mm
  • Image diameter: 25.0 mm
  • Gobo thickness: 1.1 mm

FRAMING SYSTEM

  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the framing system module: +/- 60°

IRIS DIAPHRAGM

  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open

FROST

  • Progressive linear frost for wash effect
  • Light frost for erasing the edge of the beam

EFFECTS

  • Graphic animation effects-wheel with continuous rotation in both directions
  • CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
  • 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 5 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

DOMINO LT-IP65

  • IP65 XLR 5-pin male and female connectors for DMX connection
  • IP65 RJ45 IN / OUT connectors for ArtNet™ connection
  • IP65 PowerCON TRUE1 male connector for power connection

DOMINO LT-IP66

  • DMX IN / OUT tails to bare end for IP66 connection
  • Ethernet IN / OUT tails to bare end for IP66 ArtNet connection
  • Power tail to bare end for IP66 power connection

CONTROL

  • DMX 512 protocol, through IP65 DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with IP65 LCD display
  • Choice of 3 DMX modes (from 44 to 70 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 120 to 240 Volts – 50/60Hz
  • Power: 1,600 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Super Silent Mode
  • Safety protection against temperatures excesses

HOUSING

  • Moving-head skeleton made of die-cast aluminium
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in die-cast aluminium
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP65 protection rating
  • Exterior finish: black (Carbon)

INSTALLATION

  • Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
  • Minimum usage distance: 3.0 m (9.84 ft)

SIZE

  • Product: 490 x 884 x 330 mm (l x h x d)
  • Flight-case foam: 765 x 665 x 555 mm (l x h x d)

WEIGHT

  • Product: 60.0 kg

>
