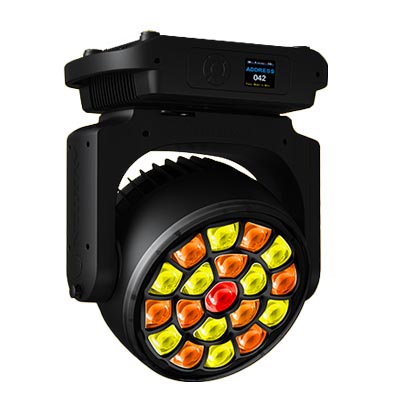

Argo 6 Wash IP65
ARGO 6 WASH can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 WASH is equipped with 19 LEDs of 40 W with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access, and its front window, made of highly resistant and exceptionally transparent polycarbonate with a V-0 protection rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
Main Features
|
IP Rating
IP65 |
|---|
