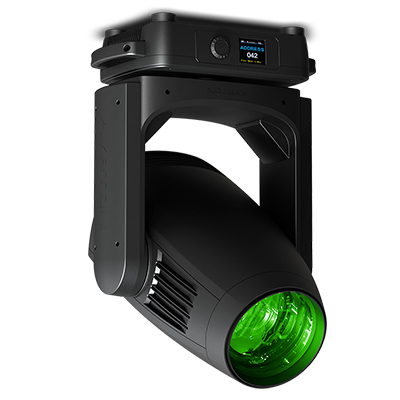

Eurus

AYRTON has developed a new high-efficiency power supply in an entirely new die-cast aluminium base that takes up 33% less volume than in other luminaires of the same category.

Description

A lighter internal structure and all-new miniaturised stepper motors add to the final result. This new luminaire boasts optics specifically developed for applications requiring perfect image reproduction and significantly reduced distortion caused by the shutter blades in wide zoom. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an 11:1 zoom ratio and a zoom range of 4.5° to 50°.

EURUS is available in two versions: S and TC. EURUS-S, specially designed for stage applications, is equipped with a new 650 W ultra-compact monochromatic LED emitter calibrated at 8000 K, it can deliver metallic white light with an output of 32,000 lumens at a colour temperature of 6700 K. EURUS-TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90, at a colour temperature of 6000 K.

In addition, the colour section contains two additional filters for optimising the colour rendering index and TM30 readings. The framing section allows accurate positioning of each shutter blade on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes one continuous dynamic effect-wheel, 15-blade iris diaphragm, two frost filters (one for light and one for heavy diffusion), two combinable rotating prisms (one circular with 5 facets and one linear with 4 facets). EURUS has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, designed for stage and studio applications.



OPTICS

  • 13 elements 11:1 zoom high-resolution optic system
  • Beam aperture: 4.5° to 50°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 170 mm frontal lens for greater performance

LIGHT SOURCE

  • EURUS-S:
  • 45,600 lumens 8000 K white light engine
  • Total luminaire output: up to 32,000 lumens
  • Colour temperature output: 6700 K
  • CRI: greater than 70
  • EURUS-TC:
  • 32,000 lumens 7000 K white light engine
  • Total luminaire output: up to 22,200 lumens
  • Colour temperature output: 6000 K
  • CRI: greater than 90
  • EURUS-S & EURUS-TC:
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving head range: 540° (pan), 270° (tilt)

COLOURS

  • Sophisticated colour mix system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with seven complementary colours
  • 2 CRI improvement filters

GOBOS

  • Indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Fixed gobo wheel with 11 high-precision glass gobos, plus open position
  • Gobo diameter: 27.0 mm
  • Image diameter: 22.0 mm
  • Gobo thickness: 1.1 mm

FRAMING SYSTEM

  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the framing system module: +/- 60°

IRIS DIAPHRAGM

  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open

FROST

  • 2 Frost filters: one light, one heavy

EFFECTS

  • Focusable graphic animation effect-wheel with continuous rotation in both directions
  • 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5-pin male and female connectors for DMX connection
  • Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
  • PowerCON TRUE1 male connector for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 39 to 62 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 1000 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Silent Mode
  • Safety protection against temperature excesses

HOUSING

  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

SIZE

  • Product: 445 x 743 x 253 mm (l x h x d)
  • Flight-case foam: 655 x 590 x 555 mm (l x h x d)

WEIGHT

  • Product: 32.9 KG
