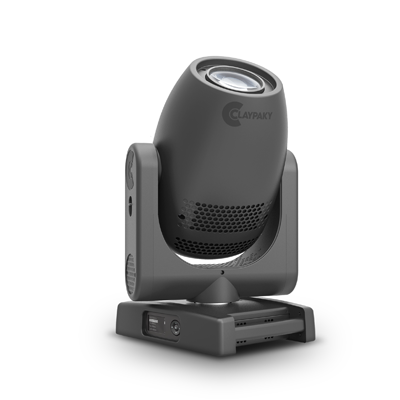

Axcor Spot 400

The Axcor Spot 400 provides the medium-power applications with a compact, bright, LED moving spotlight, complete with every device you need for exceptional projected visual effects.

The Axcor Spot 400 comes in two models:

  • Axcor Profile 400 (CLPLED405): a 16,000 lm, 6500 K, CRI=70 model
  • Axcor Profile 400 HC (CLPLED406): a 12,000 lm, 5600 K CRI=90 model





Description

There is nothing like it in its category for variety of effects and possible combinations: 2 rotating dichroic glass gobo wheels, with a total of 14 rotating gobos, an animation disc, a rotating prism, a power-driven iris, and a 16-bit dimmer. In addition to these, it features highly advanced colour management tools based on a CMY system with linear CTO and a 6-colour wheel. Another outstanding device on the Axcor Spot 400 is the incredible 5.5°-55° zoom (1:10 ratio!), with an extremely uniform light distribution at every beam aperture, which means you can use the unit in a wide range of application areas.

The Axcor Spot 400 fits a 300W white LED source with a very high light output compared to its power. It can be ordered in the 6500 K version, which maximizes its light output, or in the 5600 K version which optimizes its CRI (at least 90).

  • Source: 300W white LED module Versions available:
  • CRI: 70, CT 6500K, 16000 lm (Axcor Spot 400)
  • CRI: 90, CT 5600K, 12000 lm (Axcor Spot 400 HC)
  •  Ø 125mm (almost 5 inch) front lens
  •  5°- 55.5° linear zoom
  •  CMY + linear CTO
  •  One colour wheel with 6 colours
  •  14 HD rotating gobos on two wheels
  •  Rotating 4-facet prism
  •  Animation wheel
  • Mechanical iris
  •  Linear frost filter
  •  16-bit electronic dimmer with 4 curves
  •  Electronic strobe @25 f/sec
  •  3 different fan modes: STD, AUTO, SLN

POWER SUPPLIES
AC power input Neutrik PowerCON True 100-240V, 50/60 Hz

INPUT POWER
540 VA @230Vac – 50Hz

LIGHT SOURCE
Source: 300W White LED Module
Versions available:
– CRI: at least 70, CT 6500K (Axcor Spot 400)
– CRI: at least 90, CT 5600K (Axcor Spot 400 HC)

OPTICS
Ø 125mm front lens
5°- 55.5° linear zoom

COLOUR SYSTEM
Colour system CMY with gradually insertion
Linear CTO
Colour wheel 6 colors

EFFECTS SECTION
2 Rotating Gobo wheels : 7 interchangeable gobos
Animation wheel
Rotating Prism: 1 x 4-facet prism, indexable on 540°; clockwise and counter-clockwise rotation at variable speed
Variable frost 0-100% linear
Iris with multiple macros (random, pulsing…)
Dimmer 16 bit electronic and linear; 4 dimmer curves
Strobe 25 flash/sec, electronic, instant open and blackout

CONTROL AND PROGRAMMING
28 DMX 512 control channels
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 poles XLR input and output
Ethernet Input
Firmware update Software upload through DMX/Ethernet input

BODY
Aluminum and steel structure with plastic covers Two side handles for transportation Device locking PAN and TILT mechanisms for transportation and maintenance

MOVING BODY
PAN range 540°
TILT range 270°

ELECTRONICS
Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server

SAFETY DEVICES
Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
6.3AT fuse
Automatic break in power supply in case of overheating
Forced ventilation with axial fans

WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
26 Kg (57.32 lbs)
