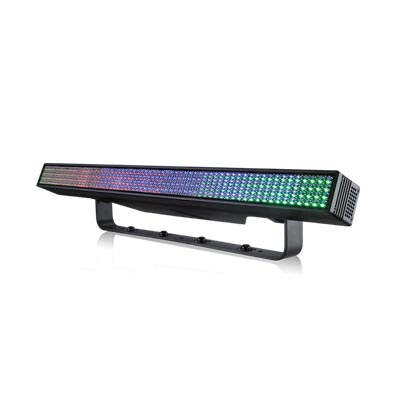

Collider Bar FC Strobe

RGBW pixel-mappable LED Bar strobe

Description

  • LED STROBE – RGBW
  • Pixel-mappable RGBW LED strobe batten
  • 16 individually controllable segments for dynamic effects and visuals
  • Interchangeable lens enables narrow (32°) or wide (100°) beam angles
  • Continuous operation possible due to advanced thermal design
  • Stunning selection of pre-programmed macros and special effects
  • Two-layer foreground and background colours and effects
  • Doubles as an LED blinder in continuous mode
  • Tour-grade construction
  •  DMX and Artnet control
Photometrics
Lamp Source 1024 x 1W RGBW LEDs
Beam Angle 100° (no lens) / 32° (with lens)
Field Angle 152° (no lens) / 82° (with lens)
Output (Instant) 54200 lm / 46000 lm
Key Features
Strobe 0-30 Hz
Dimming 4 dimming curve modes
Control
Protocol DMX, Artnet
DMX Channels 4 / 8 / 15 / 16 / 27 / 64 / 75 / 87
Display TFT 220 x 176
Power
Mains 100V-240V 50/60 Hz
Consumption 1006W
Power connections IP65 In/Out
Data connections IP65 XLR, EtherCon IP65
Power Linking Up to 2 units @ 230V
Housing
Material Diecast aluminum
Finish Matte black



IP rating IP20



Thermal
Cooling Convection
Physical
Dimensions 1000 x 75 x 231 mm
Weight 9.5 KG


Collider-Bar-FC-English-user-manual.pdf    25.94 MB
Dot2_MA2_Profile_LED_Collider_Bar_FC.zip    18.89 KB
LEDSTR101- COLLIDER BAR FC STROBE datasheet.pdf    74.47 KB
