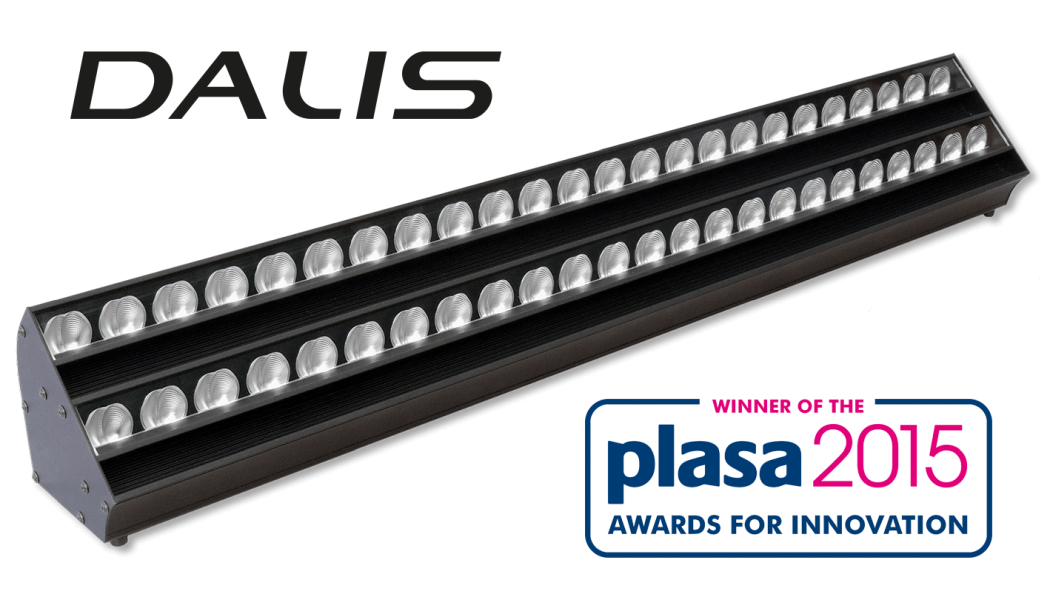

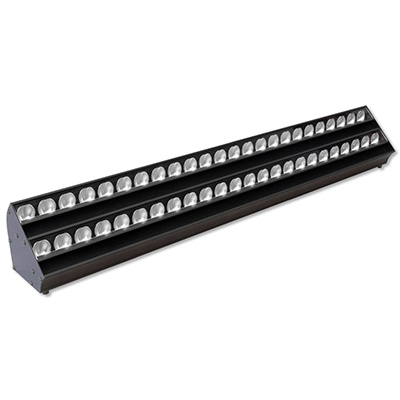

Dalis 860 Cyclight

Dalis is the new asymmetrical 300W LED cyc light from Robert Juliat, designed to deliver powerful, smooth coverage and a huge variety of pastel and saturated colours.


Dalis cyc light offers silent operation which is perfect for sound sensitive applications like opera houses and studios, and all theatrical, TV and entertainment applications.

• 8-colour mixing LED system: red, Green, Blue, Royal Blue, Amber, Cyan, Warm White (2200K), Cool White (6500K)
• Very wide colour gamut: the choice of the eight colours in association with the 16-bit control, results in an almost infinite range of repeatable colour possibilities
• Impressive range of pastel tones: desaturation of the colours possible with the addition of the Warm White and Cool White LEDs – no need to dim the light output
• True tunable white: from 2200K to 6500K – full spectrum to light backdrop
• 16-bit control of each colour: precision dimming on every colour
• Linear dimming curve: no colour fading during dimming
 Adjustable response time: choice of fast or slow dimming for tungsten-like simulation – adjustment by DMX protocol
• Control of up to 4 groups: colour variations with smooth transition by separating the unit into 2 or 4 sections
• Strobe: independent control of speed and duration
• Easy control mode available: preset calibrated colours with control of intensity and CCT
• Universal data control: compatible with DMX, RDM, Art-Net, sACN protocols
 Easy setup: locally and remotely by RDM protocol – integrated display
• Angular sensor: tilt angle displayed for perfect alignment of all the units
• Auto Flip Mode: automatic flip over of the group sections depending on the positions of the unit for easy programming
• Dimming parameters: choice of square or linear dimming curves
• Vertical mounting possible: allows easy creation of vertical colour fades (horizontal lines) – for sunrise / sunset creations
• Adjustable feet: can be installed directly on the floor; simple retractable foot mechanism to aid floor focusing

• QuickRig mounting system: spigots can be positioned anywhere along the unit to clamp anywhere on truss or light bars
• Exclusive patented optical system: 48 micro optical asymmetric reflectors spreading the light evenly across vertical surfaces
• High efficiency: massive light output, small power consumption
• Long life: outstanding operational lifetime expectation, no need to replace lamps, low maintenance
• High transmissive coated protective glass window: ensures optimal light transmission
• Directional light: allows creation of accurate linear sections

• Electronic dimmer: dimming without clipping or cut-out at low intensity levels; high quality smoothing
• Made in Europe : control over all aspects of quality
• PSU: built-in electronic flicker-free power supply for easy, plug-andplay installation
• Ethernet-DMX node: data IN through RJ45 connector; data OUT through DMX for daisy chaining
• Power connectors: neutriK® powerCON TRUE1 IN and OUT connectors for daisy chaining; delayed power out switching against inrush current
• Fanless system: convection cooling- perfect for sound sensitive applications – less maintenance required
• Electronic thermal management system: ensures maximum performance of the system without any risk of overheating
• QuickRig safety cables: easy and secure installation of the safety cable
• Lightweight and compact: easy to install in a row directly on the floor or hanged on lighting bar

RJTCYC100 - DALIS 860 Cyclight - Datasheet.pdf    4.97 MB
RJTCYC100 - DALIS 860 Cyclight - Manual.pdf    13.48 MB
RJTCYC100 - DALIS 860 Cyclight - Quick Start Guide.pdf    520.09 KB
