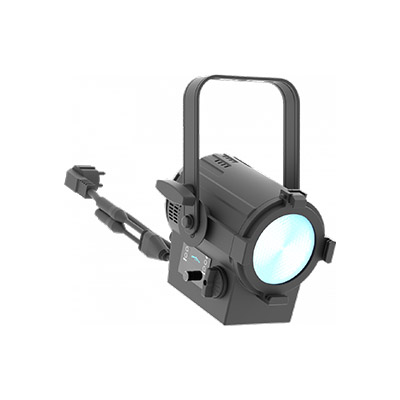

EclMini Fresnel DY

LED fresnel with HB white source, to replace 300W lamp

Description

MiniEclipseFresnel is the LED replacement for a standard tungsten 300W Fresnel. Featuring all the output characteristics of a traditional Fresnel, but with the added benefits of beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The MiniEclipseFresnel adds all the advantages of the LED to the traditional Fresnel.



Features:

  • DY (5600K) versions available both with HD dimming
  • Fresnel lens with 15° to 55° manual zoom range
  • Truly silent operation making it perfect for studio and stage use

LIGHT SOURCE

  • Source: 38W LEDs
  • CCT: 5000K
  • CRI: (15°) 82 – (55°) 81,9
  • Luminous flux:(15°) 1’349,4 lm (55°) 2’840,6lm
  • Lux:(15°) 978 lx – (55°) 348lx @3 m
  • Lux:(15°) 352,08 lx – (55°) 125,28lx @5 m
  • Source life expectancy: > 50.000 h



OPTICS

  • Zoom: 15° – 55° manual
  • Lens diameter: 3.93” – 100mm / 0.15”
  • Lens type: Fresnel zoom lens
  • Other: spigot not included; gel frame and barndoors included



COLOUR SYSTEM

  • Macros: several pre-build macros with adjustable speed



DYNAMIC EFFECTS

  • Static colour mode: selection of static dimmer
  • Manual colour mode: manual adjust of dimmer throughout menu and knob
  • Auto mode: built-in programs with execution speed adjustment



BODY

  • Body: aluminium die-casting
  • Body colour: black



CONTROL

  • Protocols: DMX512, RDM, local knob
  • DMX channels: 1 / 2-1 / 2-2 / 3 / 5channel
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: black OLED high-resolution display
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
    Master/Slave: for synchronized operation of more units linked in a chain
    Other: 16bit control of dimmer



ELECTRONICS

  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1 – 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Flicker: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz



ELECTRICAL

  • Power supply: 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): 33,2W
  • Power consumption (at 120 V): 31,8W



PHYSICAL

  • Cooling: natural cooling of the peculiar chassis and to the absence of fans
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning
  • Signal connection: DMX 5p IN/OUT
  • Power connection: 16 A Shuko plug
  • IP rating: 20
  • Dimensions (WxHxD): 191x281x203mm / 7.52”x11.06”x7.99”
  • Weight: 2,38kg / 5.25lbs


MUSFRE152 MiniEclipse fresnel DY datasheet.pdf    507.4 KB
