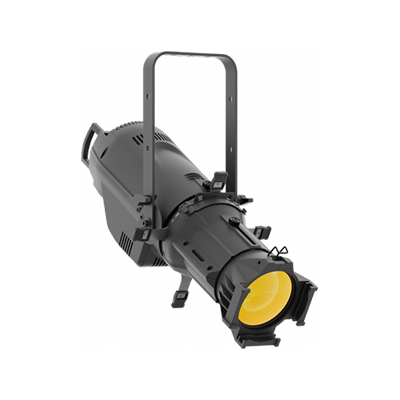

Ecl Profile FS

LIGHT SOURCE

• Source: 91x3W RGB + lime LEDs
• CCT: @full – 5.000K
• CRI: @full in STUDIO mode – 82 / @full in HB mode – 70
• Luminous flux: (26°) 6’262 lm at STUDIO mode – 6’524 lm at HB mode
• Lux: (14°) 8’090 lx – (19°) 7’020 lx – (26°) 4’960 lx – (36°) 2’610 lx – (50°) 1’190lx @3 m full
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: optional 14° / 19° / 26° / 36° / 50°
• Lens type: high-quality glass lens optics
• Focus: manual

COLOUR SYSTEM

• Colour mixing: RGB + lime / full colour
• CTC: CTC control through independent DMX channel, + / – green and magenta correction and amber shift activation by DMX
• White presets: 2.700 K ~ 10.000K
• Colour wheel: virtual colour wheel with presets
• Macros: several pre-build pixel macros with adjustable speed

DYNAMIC EFFECTS

• Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
• Gobo size: B, outer: 86 mm – image: 64,5 mm – thickness: 1,1 mm
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• Special features: HB mode, STUDIO mode, SILENT mode and linear crossfade from a white to any color and CTO applied on colours

BODY

• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black

CONTROL

• Protocols: DMX512, RDM
• DMX channels: 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch – Tungsten / 3.200 K / 5.400 K / 6.500 K / Theatrechannel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included
• Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Strobe / shutter: 1 – 25 Hz, electronic
• Battery backup: battery backup for user operation without connecting to the main power
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Power supply: 100-240 V – 50/60 Hz
• Power consumption (at 230 V): 260W
• Power consumption (at 120 V): 260W
• Output (at 230 V): 9 units on a single power line
• Output (at 120 V): 4 units on a single power line

PHYSICAL

• Cooling: low noise fan
• Suspension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 265x259x540mm
• Weight: 10kg
