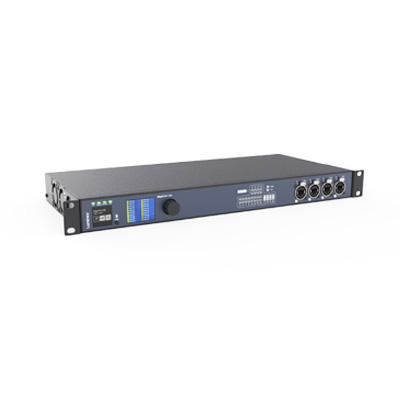

GigaCore 20t
The GigaCore 20t is the ideal 10 Gigabit Ethernet AV switch for professional touring applications.
The GigaCore 20t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.
Downloads
Datasheets
Related Products
-
LumiCore is a powerful network processing device for DMX lighting data streams, that can convert, route, and merge the most common ethernet lighting protocols. LumiCore is specifically designed for rack and truss mounting with a robust all metal housing, making it an ideal solution for touring, theatre, and studio AV installs. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency. In TV studio’s LumiCore will allow you to have control desks in the IT environment. With its split interface possibilities LumiCore allows you to isolate your lighting rig LAN from the IT infrastructure. This allows you to monitor your control infrastructure from the IT department and to centralize show storage on IT side meanwhile sharing these resources over several studios. LumiCore acts as a real bridge and can be deployed in a fully redundant way. Product Features: Mount one or two units in a 1U rack space The unit is robust and thus ideal for touring applications 64 processing engines. The M10 insert and safety ear make it easy to mount it safely on a truss Read more -
The GigaCore 30i 24x 1GB is an Ethernet switch, dedicated to AV integration, installation, and touring, designed to support the most advanced AV protocols. In combination with the Araneo software platform, GigaCore 30i is the ideal solution to deploy an entire AV network with one click in any fixed installation. Each GigaCore can be configured through an intuitive built-in AV Web UI but also, System-Wide management across the Luminex network is possible with the Araneo network monitoring, planning and management software. Araneo will boost your productivity and confidence in the network and reduce commissioning times significantly. GigaCore 30i is an indispensable part of any AV network where reliability and a quick and easy setup are needed. As a user, you don’t need to make choices nor tradeoffs as GigaCore handles most AV protocols for you out of the box: Pre-defined QoS/DiffServ (Quality of Service) settings, optimized IGMP (Internet Group Management Protocol) per group (VLAN) and pre-defined yet editable groups (VLANs) to easily separate your network in different applications making converged networks obvious, easy and reliable. For many applications, GigaCore 30i in the 1 Gigabit version, offers sufficient bandwidth, connectivity, and port availability with 6x independent SFP+ ports capable of data transfer speeds of up to 1 Gbps and 24 x 1Gbps copper ports. Time synchronization is crucial in many applications and with GigaCore 30i you have a hassle free PTPV2 enabled switch which will work for most major audio protocols (e.g. AES67, ST2110, Dante, Q-sys/Q-lan, …) without the need for making any complicated device settings. Entertainment installations constantly push the limits, and the need to deploy PoE powered devices is continuously increasing. GigaCore 30i provides an answer to these scenarios by offering PoE++ on all ports. Product Features: Most suitable applications: Fixed installations PoE: PoE ++ Optional (up to 1000W) RLinkX (Link redundancy): Yes Groups (VLAN segmentation): Yes MultiLinkX (Link aggregation): Yes (supported in a future firmware Profile manager: Yes Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage MAC address table: 16384 entries Address learning / Aging: Self learning, Auto aging Switching throughput: 60Gbps Jumbo frames: MTU up to 12000 IGMP support: Yes (V1/V2/V3) IGMP snooping: Yes, enabled by default Port sensing: Auto negotiation Auto crossover: MDI / MDIX Auto sensing: Full or Half Duplex (Gigabit is Full Duplex) Read more -
The LumiNode 12 is an easy to deploy and maintain ethernet/DMX processing device for converting, routing, and merging DMX/RDM data on a network. The unit is specifically designed with an all metal, robust enclosure for rack mounting, making it an ideal solution for theatre- and studio AV installs or for use at live performances. Equipped with 2x 1Gb Ethercon ports and 12x 5-pin DMX ports LumiNode 12 offers flexibility in a rugged 19” package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted in no less than 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality. LumiNode 12 also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back mode lets you conveniently store lighting scenes and play these back when triggered to do so. An external contact closure is included as standard to allow for example to playback lighting scenes in case of emergency. LumiNode 12 is efficient and has a low power consumption and can be powered via PoE or via mains with a robust Neutrik powercon connector. An additional power out connector allows for daisy chaining. LumiNode 12 is easy and intuitively to operate with a built-in color display and control jog for quick access to universe numbers for example. Configuration can also be done through a built in web-based user interface. The fully documented open API facilitates full integration with any 3rd party control or management system. Luminode 12 features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group (for example video control, Dante audio, …). Read more -
The LumiNode 8-IP is a weatherproof Ethernet/DMX processor built to withstand rough conditions. Easy to deploy and maintain, it enables the conversion, routing, and merging of DMX/RDM data on a network. Its robust, IP65-rated aluminium enclosure ensures durability, making it an ideal solution for outdoor AV installations and live performances. Designed for reliable outdoor use, it features passive cooling, a sufficient PoE budget, and resistance to extreme temperatures, rain, splashes, and dust. Equipped with 2x 1Gb etherCON TOP ports and 8 DMX ports with NC5FDXX-TOP connectors, LumiNode 8-IP offers flexibility in a weather proof package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported and can be processed and converted in no less than 12 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality. LumiNode 8-IP also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back mode lets you conveniently store lighting scenes and play these back when triggered to do so. LumiNode 8-IP is efficient and has a low power consumption and can be powered via PoE or via a robust IP rated Neutrik powerCON True1 TOP connector. LumiNode 8-IP is easy and intuitively to operate. Configuration can be done through a built in web-based user interface or with an NFC compatible smartphone, even when the LumiNode 8-IP is not connecter to power. The fully documented open API facilitates full integration with any 3rd party control or management system. With its two 1Gigabit ethernet ports, LumiNode 8-IP offers the possibility of an advanced network interface making it possible to separate the lighting network data streams from IT related data, allowing for remote status monitoring and management without interfering with critical lighting control data streams. Luminode 8-IP with its 1Gbps etherCON TOP connectors is ready for future ethernet-only based lighting networks. Luminode 8-IP features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group (for example video control, Dante audio, …). Product Features: Process engines: 16 Merging engine: HTP LTP Backup Switch X-Fade Custom Softpatch: Yes Master/Limit: Proportional Limit Trigger system: Yes ReRoute: Yes Profile manager: Yes Snapshot: Yes DMX Redundancy: Yes Monitoring software: LumiNet Monitor Configuration: Built in Web server Documented Web API NFC app Read more
