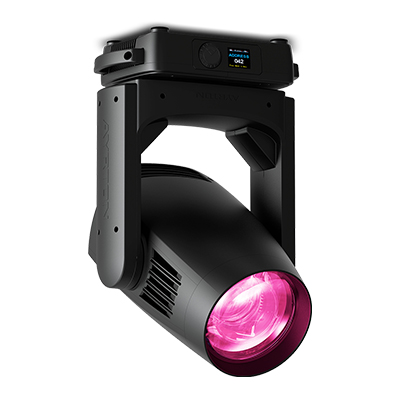

Karif LT

This is a machine with phenomenal powers capable of delivering stunning visual effects.

Description

An ultra-compact 300 W beam-spot luminaire equipped with a 168 mm frontal lens, KARIF offers an astronomical zoom ratio of 17:1 and a zoom range of 2.8° to 47°. To achieve an ultra-intense beam with an LED source, AYRTON uses an entirely new miniaturised high-efficiency low-etendue compact LED module. Calibrated at 8000 K, it can generate powerful metallic white light and deep, vivid colours suitable for this type of application. KARIF provides overall output of 14,000 lumens at a colour temperature of 6500 K. In this first hybrid LED luminaire, AYRTON has added continuous rotation to its panoramic movement to expand the possibilities for creating complex special effects.

four colour-temperature correction filters, and nine complementary colour filters on two concentric circles (patent pending). The effect section includes one wheel with nine interchangeable rotating HD glass gobos. For KARIF-LT to reproduce multiple images, AYRTON has developed a totally new wheel of fixed multi-position gobos with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending). KARIF is also equipped with a bi-directional continuous dynamic effects wheel. The prism effect system comprising four individually combinable prisms, coupled with 48 fixed and rotating gobos and an ultra-intense beam, can create unusual and spectacular kaleidoscopic effects.





OPTICS

  • 13-element 17:1 zoom high-resolution optic system
  • Beam aperture: 2.8° to 47°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 168 mm frontal lens for greater performance

LIGHT SOURCE

  • 20,000 lumens, 8000 K white-light engine
  • Total luminaire output: up to 14,000 lumens
  • Colour temperature output: 6500 K
  • CRI: greater than 70
  • Rated source life: up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

  • Highly accurate positioning
  • Moving-head operated with either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving-head range: infinite rotation (pan), 270° (tilt)

COLOURS

  • Sophisticated colour mix system providing CMY colour mixing
  • Fixed colour wheel with progressive CTO, 4 colour temperature correction and 9 complementary colours

GOBOS

  • Indexable rotating gobo wheel with 9 HD glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Rotating Gobo diameter: 18.0 mm
  • Fixed multi-position gobo wheel with instant access to 19 HD glass gobos and 20 metal gobos on three concentric circles (patent pending).
  • Fixed & rotating gobo image diameter: 13.0 mm

FROST

  • Heavy frost filter
  • Light frost filter

EFFECTS

  • Graphic animation effect-wheel with bi-directional continuous rotation
  • Prism effect system comprising four combinable rotating prisms
DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5-pin male and female connectors for DMX connection
  • PowerCON TRUE1 male and female connectors for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 32 to 46 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 550 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Silent Mode
  • Safety protection against temperature excesses
HOUSING

  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Aluminium and copper heatsinks
  • Moulded covers in self-extinguishing fire-retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (carbon)

INSTALLATION

  • Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety-cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -10° C (14° F)
  • Minimum usage distance: 2 m (6.56 ft)

SIZE

  • Product: 365 x 622 x 212 mm (l x h x d)
  • Flight-case foam: 430 x 660 x 280 mm (l x h x d)

WEIGHT

  • Product: 27 kg
