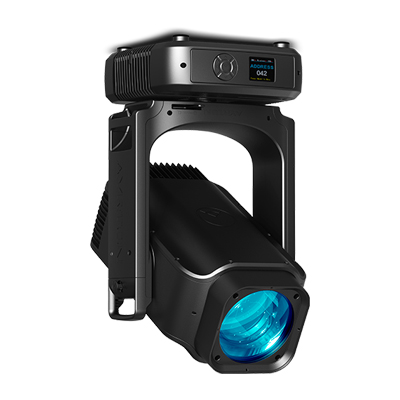

Rivale Profile IP65

Categories: , , , , , SKU: AYRRIV100

RIVALE PROFILE has been designed to push the limits of versatility. It foreshadows the style of our future line and establishes the AYRTON name as a « no-compromise » brand. Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4° close to that of AYRTON’S famous « LT » versions. The proprietary optical system has 13 lenses, delivering an 13:1 zoom ratio and a zoom range of 4° to 52°.  It offers continuous rotation of the pan and tilt movement.

Enquiry about Rivale Profile IP65

Enter the security code shown above

Description

This light-weight luminaire, AYRTON’S most versatile to date, is capable of outstanding performance unprecedented for a product in this category. Developed for mixed use indoors and outdoors and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market.

RIVALE PROFILE adopts a brand new high-definition progressive CMY colour mixing system that allows a perfect reproduction of pastel colours when the filter is added and regardless of the selected colour combination. A variable Deep RED channel optimizes the colour rendering index at low levels and offers a progressive red with a high level of saturation for specific needs. A progressive CTO and a seven-position colour wheel complete the palette of tools dedicated to creating colour. RIVALE PROFILE is factory equipped with a wheel of seven rotating gobos, a wheel of eight fixed gobos, a framing section that allows the precise positioning of each shutter blade on 100% of the surface with a rotation of +/- 90°, a iris diaphragm, a monochromatic effect wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE is a unique projector that successfully boasts performance, creativity, subtlety and power.

OPTICS

  • 13-element 13:1 zoom high-resolution optic system
  • Beam aperture: 4° to 52°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 160 mm frontal lens

LIGHT SOURCE

  • 35,000 lumens white light engine
  • Total luminaire output: up to 27,000 lumens (integrating sphere measurement, Fan mode AUTO)
  • Colour temperature output: 6500 K
  • CRI: greater than 70
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENTS

  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving-head range: infinite pan and tilt rotation

COLOURS

  • Sophisticated colour mixing system providing CMY color mixing
  • Variable CTO colour temperature correction
  • Variable deep Red channel
  • Fixed colour wheel with seven complementary colours

GOBOS

  • Indexable rotating gobo wheel with seven high precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Fixed gobo wheel with 8 high-precision glass gobos, plus open position
  • Gobo diameter: 25.2 mm
  • Image diameter: 20.0 mm
  • Gobo thickness: 1.1 mm

FRAMING SYSTEM

  • 4 individually positionable barndoors on a 100% surface area in all positions
  • Rotation of the barndoors module: +/- 90°

IRIS DIAPHRAGM

  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open

FROST

  • 2 frost filters one light, one heavy

EFFECTS

  • Focusable graphic animation effect-wheel with continuous rotation in both directions
  • 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • 5 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • IP65 XLR 5 pin male and female connectors for DMX connection
  • IP65 RJ45 IN / OUT connectors for ArtNet connection
  • IP65 PowerCON TRUE1 male and female connectors for power connection

CONTROL

  • DMX 512 protocol, through IP65 DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Local control panel, with IP65 LCD display
  • Choice of 3 DMX modes (from 44 to 70 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 750 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Super Silent Mode
  • Safety protection against temperatures excesses

HOUSING

  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast composite alloy
  • Heatsinks in aluminium and copper
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Four-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP65 protection rating
  • Exterior finish: black (Carbon)

INSTALLATION

  • Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
  • Minimum usage distance: 2.0 m (6.56 ft)

SIZE

  • Product: 360 x 667 x 320 mm (l x h x d)
  • Flight-case foam: 485 x 565 x 560 mm (l x h x d)

WEIGHT

  • Product: 30.8 kg


AYRRIV100 RivaleProfile datasheet.pdf    595.08 KB

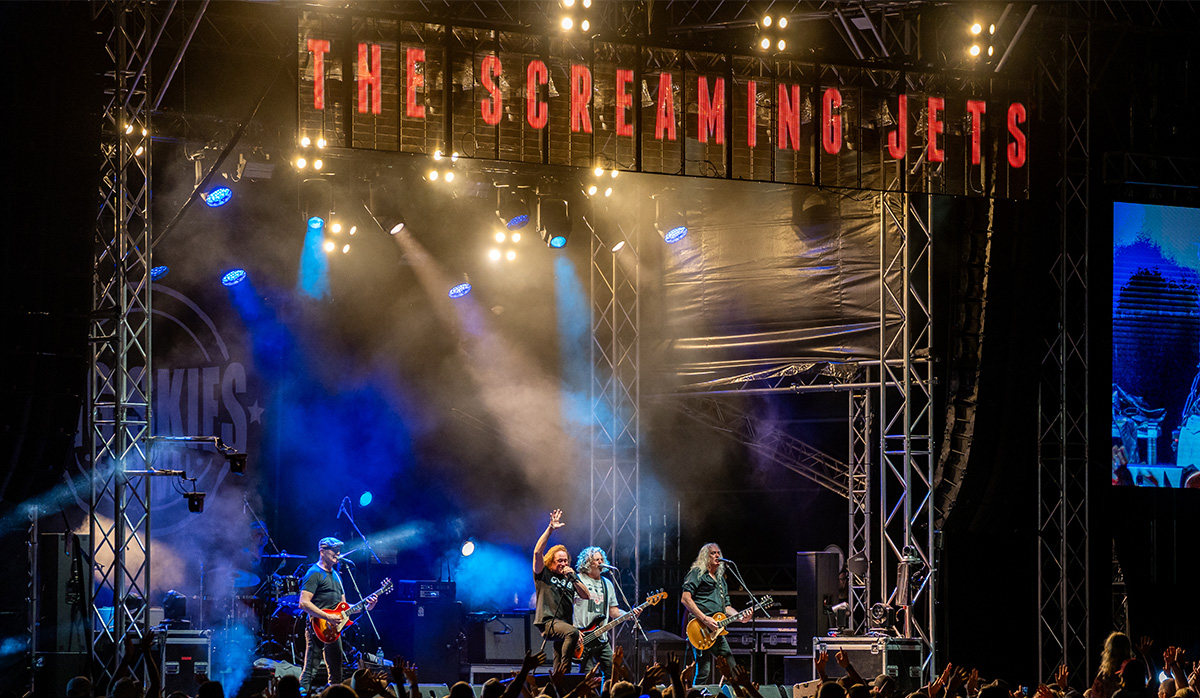

There’s No Rival for the Ayrton Rivale

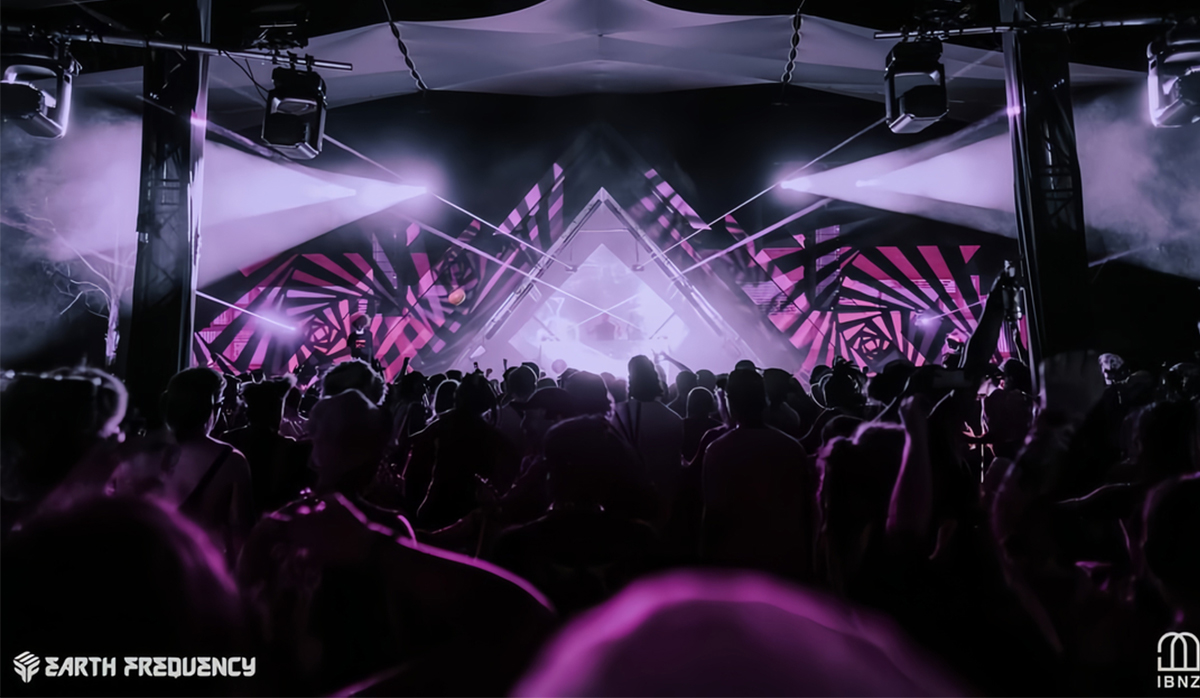

Twisted Pair add Ayrton Rivales to their Fleet
