LED Fresnel RGBAL DMX Zoom

The LED Fresnel RGBAL DMX Zoom brings greater flexibility to the user creating variable colour temperature whites or vibrant saturated colours making it the fixture of choice. The power of LIME to boost the lumen output for white and lighter colours creates brighter and more closely matched colours of the conventional fixtures.

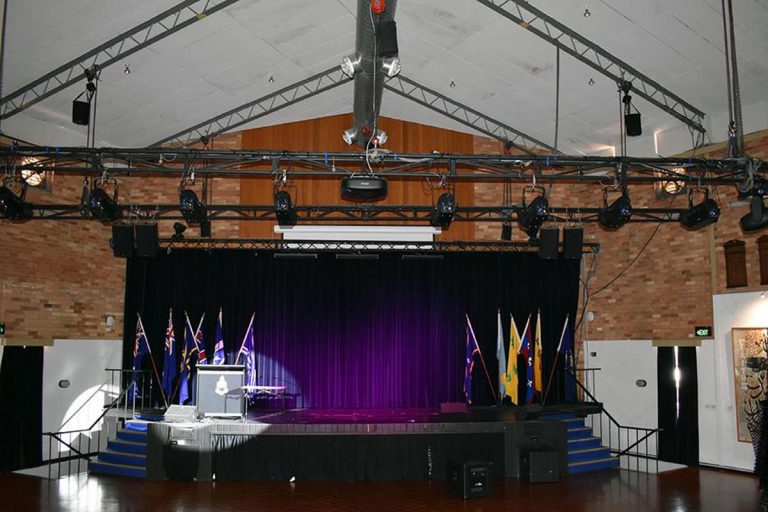

The LED Fresnel RGBAL DMX Zoom comes with 230W output with a colour temperature between 2700k-10000k making it an ideal fixture for theatres, tv studios, exhibitions and conference halls.

-230W RGBAL COB LED for enhanced colour tuning

-Incorporating the latest advances in LED colour-mixing

-Flawless 16 bit dimming with consistent colour throughout the dimming curve

-DMX controlled zoom for easy focusing adjustment

-Multiple control modes including HSIC

-Selection of four dimming curves

-Selectable colour temperatures (2700k-10000k) via internal presets

-Virtual colour wheel (standard wash gel colour presets)

-Manual colour selection, mixing and control via onboard menu

-RDM on board

-Flicker free output with selectable PN frequencies for reliable HD video recording

-Stand alone control with last setting recall on power cycle


Optional Accessories:

– LEDFRE111 barndoor

– PSHDMX400 ShowPRO DMX cable 1.5m 5pin / powerCON combo

-PSHDMX401 ShowPRO DMX cable 3m 5pin / powerCON combo

– KUPRIG071 Mini coupler with T-Handle Black

– KUPRIG110 Large safety Wire (10kg SWL)

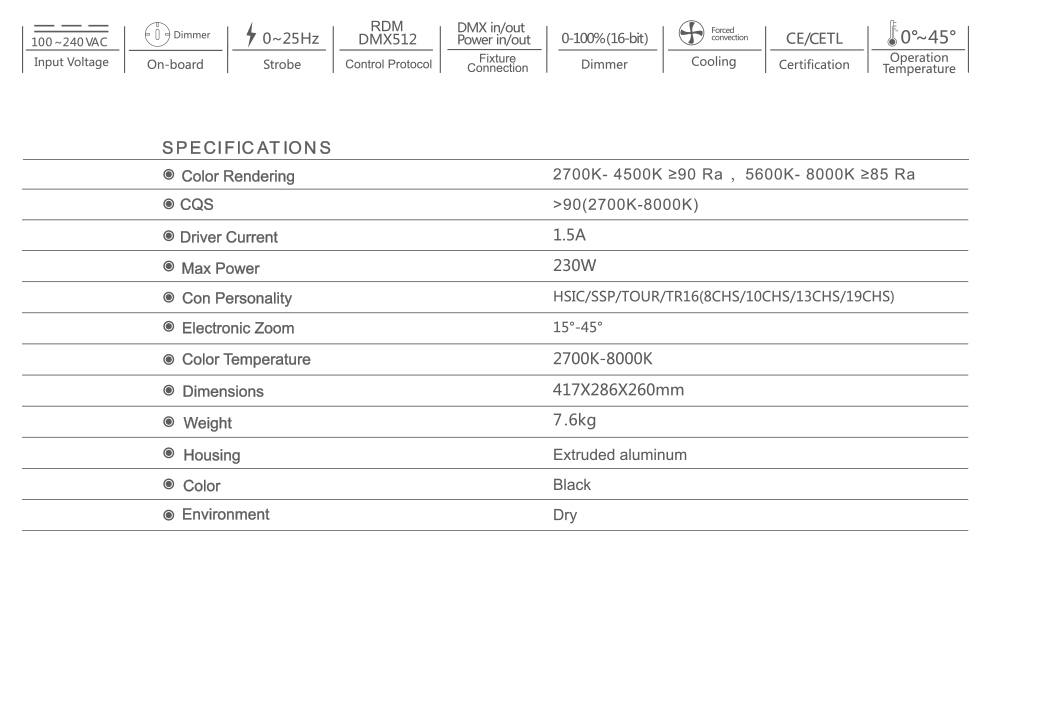

LEDFRE116 - RGBAL Fresnel DMX Zoom Datasheet.pdf    306.03 KB
LEDFRE116 - RGBAL Fresnel DMX Zoom MA Fixture Files.zip    9.03 KB
LEDFRE116 - RGBAL Fresnel DMX Zoom Manual.pdf    6.27 MB
