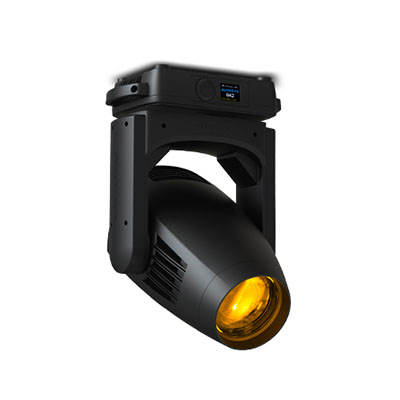

Levante

Categories: , , , , , SKU: AYRLEV101

The Ayrton S version can produce an ultra high output, generating metallic white light calibrated at 6500 K and is specially designed for stage applications. The TC version, geared for situations that require perfect colour rendition, has a native colour rendering index greater than 90 and high TM30 readings.

  • Levante – S (AYRLEV101)  Levante S Wash: 20,000lm, 6500k, CRI = 70 model
  • Levante – TC (AYRLEV100) Levante TC Wash: 15,000lm, 5700k, CRI = 90 model

Enquiry about Levante

Enter the security code shown above

Description

Feature-rich from the factory, Levante is not only equipped with a barndoor module but also a CMY colour mixing system, which, combined with a variable CTO and a wheel with seven complementary colours, produces an infinite palette of vivid pastels and saturated colours. A 15-blade iris diaphragm and a wheel with seven indexable rotating gobos are supplied as standard equipment. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the barndoor system, fitting into the same format as Mistral. Levante has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, designed for stage and studio applications.

The S version can produce ultra-high output, generating metallic white light calibrated at 6500 K and is specially designed for stage applications. The TC version, geared for situations that require perfect colour rendition, has a native colour rendering index greater than 90 and high TM30 readings. Feature-rich from the factory, Levante is not only equipped with a barndoor module but also a CMY colour mixing system, which, combined with a variable CTO and a wheel with seven complementary colours, produces an infinite palette of vivid pastels and saturated colours. A 15-blade iris diaphragm and a wheel with seven indexable rotating gobos are supplied as standard equipment. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the barndoor system, fitting into the same format as Mistral. Levante has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, designed for stage and studio applications.



OPTICS

  • 13-element 9:1 zoom high-resolution optic system
  • Beam aperture: 6.3° to 58°
  • High-speed motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 138 mm frontal lens for greater performance



LIGHT SOURCE
Levante-S

  • 26,500 lumen, 8000 K white light engine
  • Total luminaire output: up to 20,000 lumens
  • Colour temperature output: 6500 K
  • CRI: greater than 70

Levante-TC

  • 20,500-lumen 7000 K white light engine
  • Total luminaire output: up to 15,000 lumens
  • Colour temperature output: 5700 K
  • CRI: greater than 90

Levante-S & Levante-TC

  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events



MOVEMENT

  • Highly accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt with automatic repositioning
  • Moving-head range: 540° (pan), 270° (tilt)

COLOURS

  • Sophisticated colour mix system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with seven complementary colours

GOBOS

  • 1 indexable rotating gobo wheel with 7 metallic gobos, plus an open position
  • Adjustable-speed rotating gobo in both directions
  • Gobo diameter: 25.0 mm
  • Image diameter: 19.0 mm

BARNDOORS

  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the barndoor system module: +/- 45°

IRIS DIAPHRAGM

  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open

FROST

  • 0% to 100% variable linear frost

EFFECTS

  • Sparkle effect: dynamic animation effect with speed and fade adjustment

DIMMER / STROBE

  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version

HARDWARE FEATURES

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess-temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • PowerCON TRUE1 male and female connectors for power connection

CONTROL

  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 31 to 52 DMX channels)

POWER SUPPLY

  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60Hz
  • Power: 550 W maximum

COOLING SYSTEM

  • Advanced liquid cooling system
  • Self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Silent Mode
  • Safety protection against temperature excesses

HOUSING

  • Moving-head skeleton made of aluminium and steel plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)

INSTALLATION

  • Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point

OPERATING PARAMETERS

  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
  • Minimum permitted ambient temperature (Ta min): -10° C (14° F)
  • Minimum usage distance: 1.5 m (4.92 ft)

Compliance
EU (EMC)

  • EMC Directive 2014/30/EU

EU (LVD)

  • LVD Directive 2014/35/EU

SIZE

  • Product: 365 x 591 x 212 mm (l x h x d)
  • Flight-case foam: 430 x 660 x 280 mm (l x h x d)

WEIGHT

  • Product: 22.0 KG


AYRLEV101 Levante Manual.pdf    3.26 MB
