Macula Complete System

Macula is the only Ground Controlled Follow Spot System open to any fixture of your choice.

Description

The Macula system can be used as a direct system or as multiple fixture setup. It is the first system to enable the synergy between Follow Operator and Lighting Designer shifting between functions used by Lighting Designer or Leaving more controls to the Operator.

Product Features:

NDI Camera
Configurable to any moving head
17inch Touch screen
On screen interface
Supports PoE
SAcn & Artnet
Adjustable user interface
Preset action keys
Adjustable tripod
Motorized handles
Fluid encoder head
High power CPU

The system adds a large amounts of advantages for the lighting designer and the spot operator. Based on high quality components, fast CPU´s and a simplified software adds a powerful tool for the lighting industry increasing the trust and reliability to the remote control device from the distance.

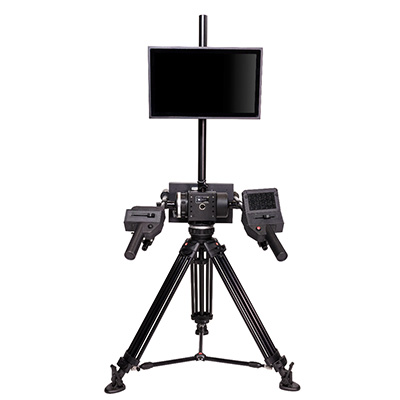

Including in the system

17” Touch screen + Monitor cable (HDMI+USB+POWER)

Adjustable Tripod

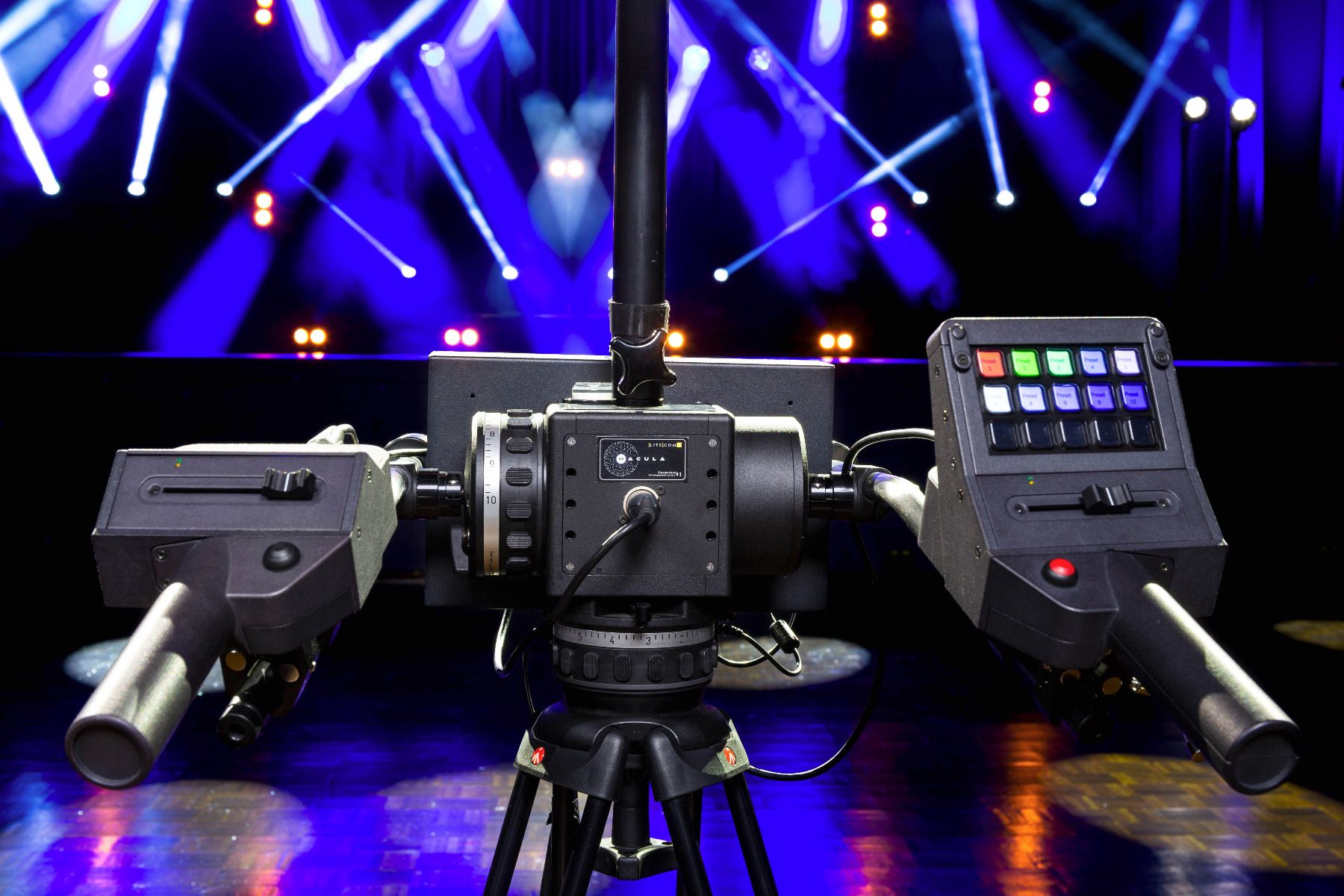

1 left motorized handlebar + 7Pin Xlr Cable 0.5m

1 Right motorized handlebar, including a keypad + 7 Pin Xlr Cable 0.5m

1 Fluid Head Encoder

1 CPU

1 NDI Camera + 2 m Power & Cat5 cable + Camera mount

1 Camera box – Not including Super clamp & safety wire.

1 PSU: External power supply from 230V to 12V. Max Wattage 60W – Schuko to True1

Weight: 24kg

NDI Camera

Macula Systems choose the PoE Full HD Birddog PF120 box camera

Video-signal & Power via RJ45 Cat 5 or Cat 6 cable for a maximum distance of 100m

Optionally use fiber for getting a longer distance

Remote control functions: Zoom, Focus & Exposure

ArtNet/sACN

Create your universe directly from the Macula system. Select ether ArtNet/sACN

The dmx signal out from Macula is Rj45. So if you want to go with 5P Dmx Cable to the fixture you will need to go out of a Lighting console or Node

32 x sACN universe in/out can be made

4 x Artnet universe in/out can be made

Multi fixture mode

The Macula system enhance multi fixture setups.

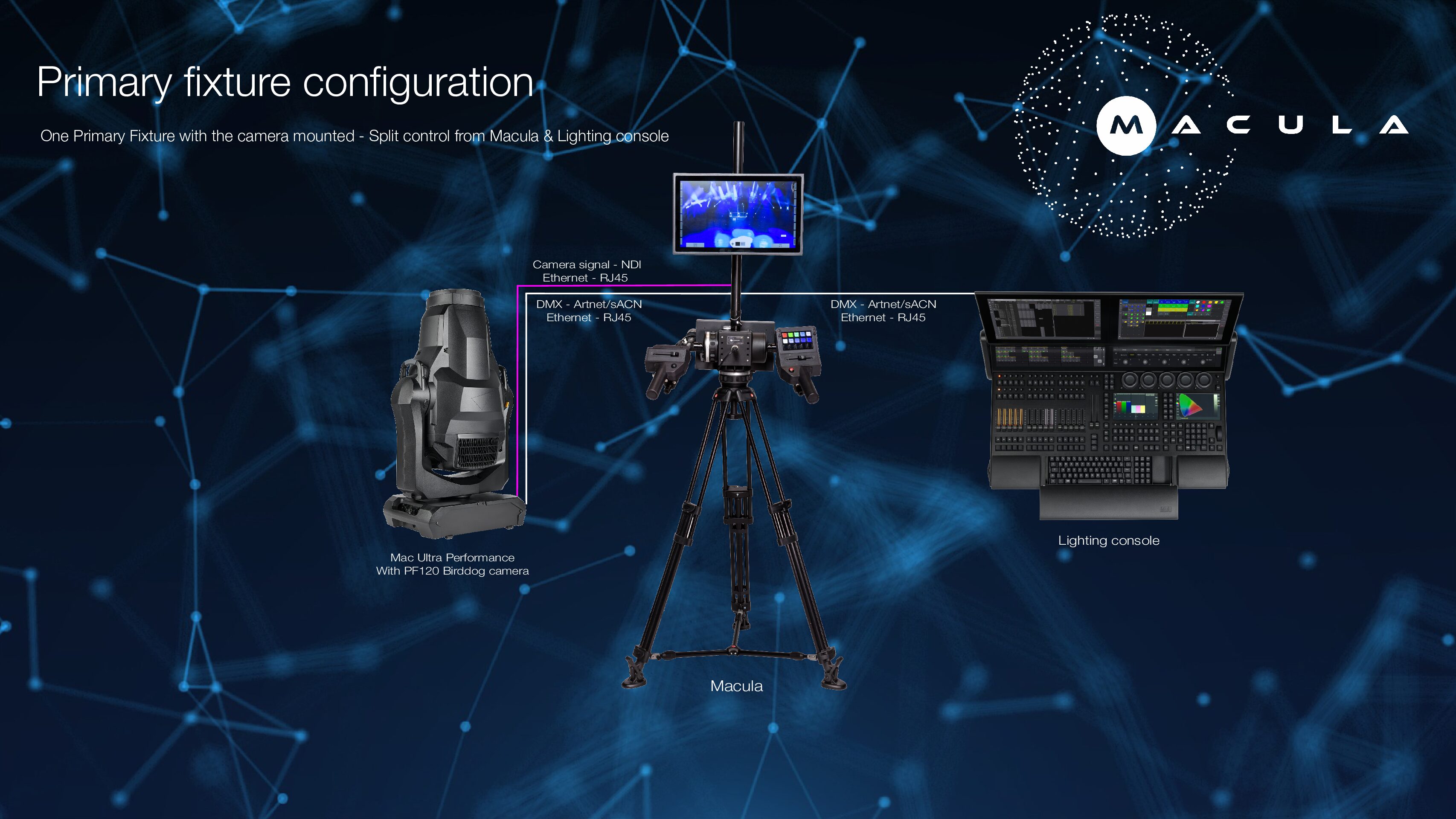

Define where your selected fixtures geographical position and add the XYZ metric data to the software in relation to the Primary Fixture physical position. The algorithm of Macula software will keep track of XYZ in relation to the Primary Fixture.

Choose from programming the independent fixtures directly in the Macula software or leave it to the LD to add the features to the involved fixtures.

Macula System supports save and recall of groups of fixtures and different Primary Fixtures. This is called banks. Creating banks in the system software enhance complexed systems enabling to share fixtures between multiple Macula systems and lighting consoles.

Macula add the feature of multiple viewports thru the rig of cameras attached to the Primary Fixtures. This empower the operator to switch around the rig of Primary Fixtures to gain the best optional viewport for a clear sight of the stage.
