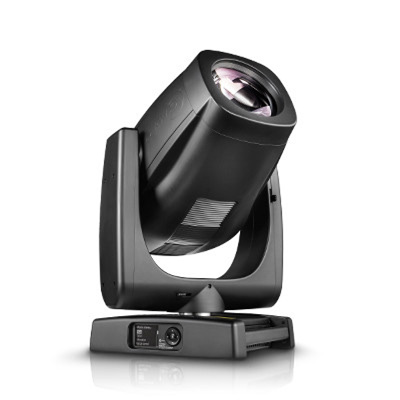

Sharpy X Frame
Adding to the family of the award-winning SHARPY fixtures, Claypaky introduces the SHARPY X FRAME multifunction luminaire. The SHARPY X FRAME takes the best features of the SHARPY line and integrates a four-focal plane shutter system in a lightweight, compact fixture. The unit’s source is the powerful 550- Watt arc lamp that makes this fixture extremely bright and produces deep and vivid uniform colours (including an unmatched deep red).
Main Features
|
Light Source
550w Arc Lamp |
|---|---|
|
Light Output
18,800 |
|
Zoom Range
3° – 52° |
|
IP Rating
IP20 |
|
Weight
28kg |
