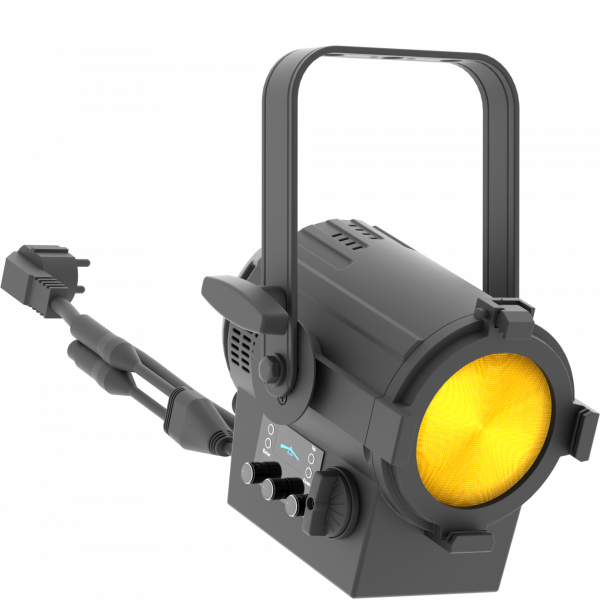

EclMini Fresnel FC

LED Fresnel FC and Tunable White, to replace a 300 W lamp.

Description

EclMiniFresnel FC is an advanced LED replacement for the traditional 300 W Fresnel lamps. Offering 4 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 8.000 K with extensive colour reproduction. The optical system harnesses the power of a 68 W custom LED with 4 colours to create an even projection, beautiful colours and precise whites. Featuring HD dimming and tuning from 2.800 K to 8.000 K version, the EclMiniFresnel FC delivers the performance and quality of output demanded from this level of light.

Main features:

  • Tunable white 2.800 K – 8.000 K with extensive colour reproduction
  • RGB + lime full colour mixing to achieve any colour palette
  • Silent operation for studio and stage use.



LIGHT SOURCE

  • Light source: 68 W RGB + lime LEDs custom LED engine
  • Source: 68W RGB + lime LEDs
  • CCT: 2.800 K – 8.000K
  • CRI: up to 82 Ra
  • R9: up to 91
  • Luminous flux: (15°) 151 lm – (75°) 732lm
  • Lux: (15°) 76 lx – (75°) 50lx @3 m full
  • Lux: (15°) 27 lx – (75°) 18lx @5 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Zoom: 15° – 75° manual
  • Lens diameter: 3.93” – 100mm / 0.15”
  • Lens type: Fresnel zoom lens
  • Additional optics: 20° filter on board
  • Other: spigot not included; gel frame and barndoors included

COLOUR SYSTEM

  • Colour mixing: RGBL
  • CTC: CTC control through dedicated DMX channel and amber shift activation by DMX
  • White presets: 2.800 K – 8.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

  • Static colour mode: selection of static colour
  • Manual colour mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade from a white to any colour and CTO applied on colours

BODY

  • Body: sturdy die-cast aluminium body conceived for long-time durability
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM, local knob
  • DMX channels: 1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17channel
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: black OLED high-resolution display
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -10° ~ +40°
  • Flicker: flicker-free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Power supply: input: 100-240 V AC, (50-60 HZ) – output: DC 48 V 1 A 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): 25,1W
  • Power consumption (at 120 V): 25,9W
  • Power factor: pF 0,58 @120 V – pF 0,55 @230 V

PHYSICAL

  • Cooling: passive cooling and fan-free
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning
  • Signal connection: DMX 5p IN/OUT
  • Power connection: 16 A Schuko plug
  • IP rating: 20
  • Dimensions (WxHxD): 191x281x203mm / 7.52”x11.06”x7.99”
  • Weight: 2,52kg / 5.56lbs
