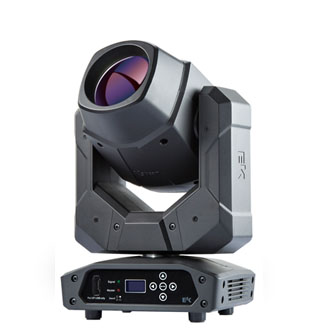

K5 LED Beam

The K5 LED Beam is the brightest LED moving beam in its class with an ultra compact optical system



Description

– Ultra-compact proprietary optical system
– Cool-running whisper-quiet operation
– Nimble 16-bit 540°/270° motorized pan/tilt movement
– DMX, stand-alone and sound-active control
– Tight, solid, consistent beams
– Pan/tilt inverse, display inverse and auto-blackout
– Beam Angle: 2.5°
– Colours: 14 + Open
– Prism: 8-facet, bi-directional, variable-speed rotation
– Strobe: 1 ~ 30Hz and pulse effects

Photometrics
Light Source 14W 6500K LED
Beam Angle 2.5°
Output 18500 LUX @ 5 meters
Power
Mains 100 – 240 VAC, 50/60 Hz
Consumption 38W
Power connections PowerCon In/Out
Power linking Up to 70 units @ 230V
Key Features
Pan movement 540°
Tilt movement 270°
Color wheel 14 + open
Prism 8-facet, bi-directional
variable-speed rotation
Control
Protocol DMX, Standalone, Sound-active
DMX channels 8-Oct
Data connections 5-pin & 3-pin XLR In/Out
Onboard menu OLED display with 4-button
Navigation
Built-in shows 4 motor programs
Physical
Size 220 x 170 x 343 mm
Weight 5.2 kg
LEDMOV400-K5-Beam-datasheet-SH.pdf 225.67 KB
K5 Beam - user manual-email.pdf 1.8 MB
