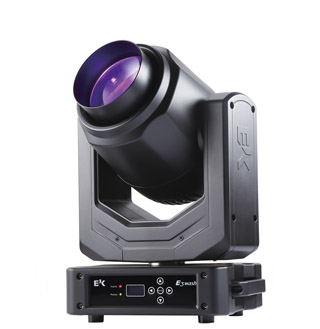

E3 LED Wash

The LED Zoom Wash comes with RGBW colour mixing and an ultra smooth dimming with perfectly consistent colour.

SEND ENQUIRY

Description

– Infinite RGBW colour mixing
– Ultra smooth dimming and perfectly consistent colour mixing
– Flawlessly smooth 6° – 23° motorized zoom
– 2000K ~ 8000K selectable white colour temperature presets
– Pan/tilt inverse, display inverse and auto-blackout
– Selectable dimming curves, white balance, fan speed
– Onboard library of dynamic effect macros
– Advanced optical system projects saturated colours
– Accurate 16-bit 540°/270° motorized pan/tilt movement
– White colour temp presets (2700K ~ 8000K)
– Colour Mixing: RGBW
– Zoom: 6° ~ 23°
– Dimming: 4 dimming curve modes
– Cooling: Active (variable speed fan)
– Strobe: 0 ~ 30Hz
– Display: OLED with 4-button menu navigation

Photometrics
Light Source: Osram 60W RGBW
Beam Angle: 6° – 22°
Field Angle: 14° – 40°
Output: 11000 ~ 705 LUX @ 3 meters
Key Features
Color Mixing: RGBW
Zoom: 6° ~ 22°
Strobe: 0 ~ 30Hz
Dimming: 4 dimming curve modes
Pan movement: 540°
Tilt Movement: 270°
Control
Protocol: DMX
DMX Channels: 13 / 16
Built-in Programs: Yes
Display: OLED 128 X 64
Power
Mains: 100 – 240 VAC, 50/60 Hz
Consumption: 118W / 230V
I/O
Power connections: PowerCon In/Out
Data connections: 3-pin XLR In/Out
Housing
Material: Plastic and steel
Finish: Matte black
IP rating: IP20
Thermal
Cooling: Active (variable speed fan)
Max. Ambient: 40°C
Min. Ambient: 0°C
Max. Housing: 50°C
Physical
Dimensions: 253 x 200 x 331 mm
Weight: 6.865 KG
Misc / Options
Power Cord: Neutrik PowerCon
Omega Bracket: Included (1 pc
