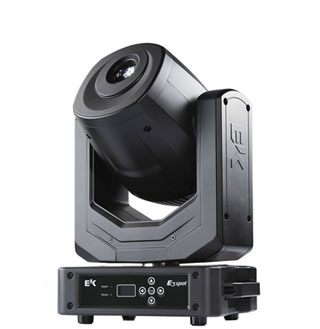

E3 LED Spot

The LED E3 Spot comes with RGBW colour mixing and advanced optical system projecting saturated colours.



Description

– Infinite RGBW colour mixing
– Ultra smooth dimming and perfectly consistent colours
– Bi-directional rotating gobo and prism wheels
– Selectable dimming curves, white balance, fan speed
– Flawless 16-bit 540°/270° motorized pan/tilt movement
– Advanced optical system projects saturated colours
– Pan/tilt inverse, display inverse and auto-blackout
– Motorized focus, gobo shake, pulse strobe effects
– Colour mixing: RGBW
– Rotating gobos: 7 + Open
– Prism: 3-facet, bi-directional, variable-speed rotation
– Dimming: 4 dimming curve modes
– Focus: Motorized
– Colour Presets: 11
– Onboard menu: OLED display with 4-button navigation

Photometrics
Light Source: Osram 60W RGBW
Beam Angle: 19°
Output: 1682 LUX @ 3 meters
Key Features
Color Mixing: RGBW
Static Gobos: 9+1
Rotating Gobos: 7+1
Iris: YES
Prism: 3
Frost: NO
Zoom: NO
Focus: YES
Strobe: 0 ~ 30Hz
Dimming: 4 dimming curve modes
Pan movement: 540°
Tilt Movement: 270°
Control
Protocol: DMX, UFI
DMX Channels: 15 / 18 / 23
Built-in Programs: Yes
Display: OLED 128 X 64
Power
Mains: 100 – 240 VAC, 50/60 Hz
Consumption: 118W / 230V
I/O
Power connections: IEC In/Out
Data connections: 3-pin XLR In/Out
Housing
Material: Plastic and steel
Finish: Matte black
IP rating: IP20
Thermal
Cooling: Active (variable speed fan)
Max. Ambient: 40°C
Min. Ambient: 0°C
Max. Housing: 62°C
Physical
Dimensions: 253 x 192 x 352 mm
Weight: 6.878 KG
Misc / Options
Power Cord: IEC
Omega Bracket: Included (1 pc)
E3-Spot-User-Manual-v2.00.pdf 3.08 MB
LEDMOV410-E3-Spot-datasheet.pdf 734.05 KB
