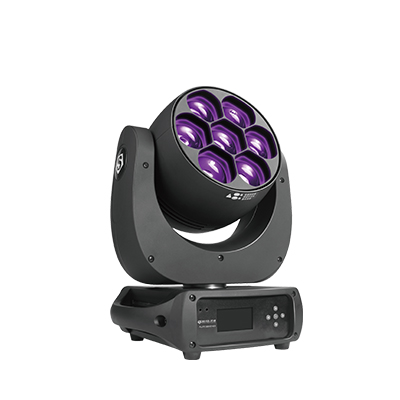

Pluto 2000 wash moving head CCS3

The Pluto 2000 wash CCS3 moving head is the new generation of wash lights! Each of the 7x40W RGBW LEDs can be individually controlled and with the new colour consistency system match other fixtures with CCS in the Silverstar range.

Description

The Pluto 2000 wash moving head CCS3 features:

  • 7x40W (RGBW)
  • Colour consistency system
  • Pixel control
  • 9.3kg
  • Rapid & silent Pan & tilt movement
  • 1:8 Electronic zoom 4.5°-36° with refined 16bit dimming
  • Beam angle 4.5°-36°, Field angle 9°-52°
  • Preset CCT 2700k-8000k
  • DMX 3pin/5pin In/out, RDM, ARTNET



Optical System
Lamp Source 7x40W (RGBW)
Angle 4.5°-36° (field angle  9°-52°)
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 300W
Driver Current 2.5A
Power Connection Power In and out
Signal socket 3 pin in and out, 5 pin in and out, Art-net
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Forced Convection
Control DMX512, RDM, ARTNET
Display Onboard Control, custom Mode, 0-25Hz Strobe
Dimming 0-100% 16Bit
Con Personality HSIC (13CHS), PERSON1 (13CHS), PERSON2 (21CH), PIXEL(37CHS)
Special Pan/Tilt movement blackout, user-selectable pan/tilt ranges
Appearance
Size 375x302x293mm
Weight 9.3KG
Casing Flame-retardant plastic (VO)
Colour Black
Work Environment
Ambient Temp 0-45°
IP Rated IP20


LEDMOV530 - Pluto 2000 Wash Manual.pdf    1.65 MB
LEDMOV535 - Pluto 2000 Wash CCS3 Datasheet.pdf    1.53 MB
Pluto 2000 & 4000 DMX assignments V3.pdf    231.56 KB
silver star@pluto 2000 ccs3.xml    94.64 KB
Silver_Star@Pluto_2000_CCS3@1.00.gdtf    96.07 KB
