An innovative LED CYC unit well equipped for the harsh environments with an IP65 rating, this unit will take the bad weather head on with ease. No matter what the application is, lighting a CYC or a façade outdoors the AuroCYC has you covered. The 180W HEX colour LED engine provides the user a high CRI and extended colour range while the CCS3.0 calibration ensures every fixture reproduces the same output in mixed colour or CCT’s between 1800K to 10,000K. -
RigSwitch is a remote controlled power switching solution suitable for any size venue, utilising a broad portfolio of power management technologies. CODE:ERODIS012 RigSwitch 12 16A RCBO CODE:ERODIS024 RigSwitch 24 16A RCBORigSwitch can be delivered in 12 or 24 channel cabinet configurations with RCD or RCBO options with a choice of user control interfaces. With individual relays rated for up to 32A operation RigSwitch can cater for even the most power hungry user. RigSwitch is ideal for switching power for today’s modern entertainment lighting systems, including moving lights, LEDs, amplifiers, specials and video equipment. Product Features: DMX control per circuit (or control via DALI and iCANnet) Remote button panels available, or use any switch via contact closure Intelligent propagation delay to reduce power-up inrush nuisance tripping Manual override of any circuit (mechanical, not digital) 10 or 16 amps per circuit Neutral Disconnect MCBs with RCBO per circuit Includes cable gland plate insert (top) OVERRIDE RELAYS: The feed through relays provide outstanding features & performance in a truly competitive package. Each circuit is rated for up to 32 amps and is designed to switch heavy loads of all types, including resistive, inductive & capacitive. CONTROL OPTIONS: Three methods of control are available – DMX, DALI and iCAN. These can be used exclusively, or brought together to link with a virtually limitless number of other products to build a system of any size. USER INTERFACE: Control panels are available in brushed stainless steel as a 2 button wall panel, On & Off and a 6 button wall panel, 5 Scenes & Off. Also available – A UIM network powered universal interface with 6 configurable inputs, each input can be individually configured as 0-5V analogue, digital or photoelectric cell inputs. -
The DiamondBack offers a super bright RGBW pixel controllable beam with a zoomable range of 3°~56°. Capable of stunning strobe effects which can generated by the CW+WW pixel controllable outer linear LEDS. Boasting a super smooth tilt range of 205 ° and 1100W of LED power the Diamondback easily cuts through the competition in creativity and output. Tour ready in a 3 unit pack complete with flight case. Product Features: • 1100W RGBW+CW+WW LED to produce perfect colour blending and stunning strobe effects • Ultra high brightness of 60000lm • Zoom range from 3°~56° • White colour temperature from 2700K~8000K, WW: Ra≥90 • 14 RGBW pixels + 56 individually controllable WW/CW segments for dynamic effects and visuals • Built-in effects and macros give multi-selections of fast programming • Selectable PWM frequency for flicker-free video with any camera • Advanced thermal designs with multi fan modes for proper noise level at different applications • DMX, Art-Net and RDM control -
Gateway 4 provides flexible DMX / RDM data distribution, converting four universes of Ethernet (sACN or Art-Net) into DMX512/RDM. The unit can be desk mounted or safely secured to a vertical or horizontal bar by adding a standard clamp onto one of two m10 mounting positions. Gateway 4 is fully compatible with the latest protocols (sACN, Art-Net 4, LLRP, DMX & RDM), ensuring your distribution network is ready to meet your future demands. Gateway 4 is appropriate for permanent installations or as a flexible, adaptable rental & touring tool due to it’s compact, rugged and scratch-resistant metal design. When combined with any ZerOS console, Gateway 4 provides on-board configuration from the console, for a truly integrated system. Alternatively, the unit can be configured through an internal web server or via optional control software. DHCP enables automatic IP addressing; static IP and LLRP negotiation are also supported. The input is an EtherCON / RJ45 connector. The four outputs are protected against electrical faults. All connectors are Neutrik parts. Gateway 4 can be powered via “Power over Ethernet” (PoE) or from an external power supply (not included). Gateway 4 is ideal for use alongside Splitter 8 and Gateway 8 to build a larger data distribution system. -
The Cryo-Gate is a compact device that mates up to any professional fogger. It enables the user to temporarily transform their existing fogger into a low fog generator. To be used with CO2-high pressure bottles. The Cryo-Gate sits in front of the fogger‘s nozzle. A high-pressure dip-tube siphon CO2 tank connects to the unit and allows the user to add a variable amount of CO2 and air to the fog‘s output. The result is a cold fog that stays low. A tube (Ø 200 mm) can be connected to the front of the Cryo-Gate to guide the fog into the requested direction. The tube can be around ten meters long, allowing to place the machine away from the stage to avoid disturbing noise. Holes at the Cryo-Gate ease mounting it to a rack or building it into a flightcase. Product Features: Can be used with fog generators that have been already bought Ethernet, DMX 512, analogue (0 – 10 V) and manual control Several adjustments (Air, CO2- and fog output) Adjustments made via Touchscreen Compact Connector for tube CO2 high pressure bottles can be rented nearly everywhere Also available without flightcase Made in Germany -
COBRA is the first factory standard AYRTON phosphor laser source luminaire based on the concept of DREAMSPOT 18K, presented at Prolight+Sound 2016. Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. COBRA pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. COBRA adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions. COBRA is provided with a highly innovative colour section including a CMY mixing system and a multi-position instant access wheel equipped with six corrective filters, 21 complementary colour filters, and a variable CTO on two concentric circles 2D-ColorWheel™. COBRA has an unrivalled graphics capability, offering a wide choice of 92 fixed and rotating metal gobos distributed on two wheels specifically created to sculpt light in “beam” mode and incorporates an animation section on the gobo wheel 2D-GoboWheel™. These gobos can be blended with two sections of four individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete COBRA’s graphic tool palette. Well-suited for use indoors as well as outdoors, COBRA was developed as a unique versatile luminaire that incorporates all waterproof features, while remaining easily accessible and limited in weight. Able to operate in the most extreme situations, it has a sunlight protection system SunProtect-65™ and an integrated heating system that safeguards against temperatures below -10° C (14° F) ColdProtect-65™. But above all, COBRA is the only luminaire on the market capable of illuminating an object several kilometres away… COBRA is simply unique. -

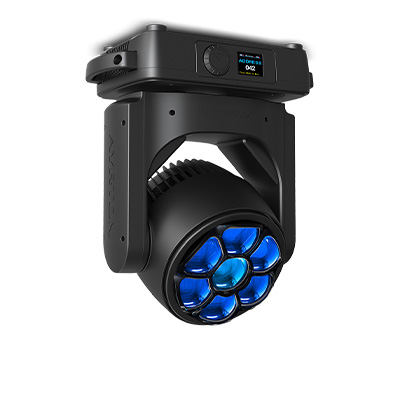

ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen. It is provided with additive colour synthesis that can reproduce precise, intense and deep colours. The careful colour mixing of the sources allows for perfect colour reproduction. A specially used black honeycomb and perfect separation of the light sources helps to significantly boost the level of contrast. A complete library of pre-programmed colours, created in collaboration with lighting designers, is instantly accessible. ZONDA 3 WASH is as discreet as it is silent. A unique ventilation system was exclusively designed for this luminaire. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. -
ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen. It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in ZONDA 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of AYRTON. ZONDA 3 FX opens the doors of creativity. -
ZONDA 9 FX is the first luminaire in a new family of products devised for stage lighting, equipped with a high-performance 40 W LED source with RGB+W additive colour synthesis. This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 FX can obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°. ZONDA 9 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version and offers infinite continuous rotation on the pan & tilt axes I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. ZONDA 9 FX can produce a high-definition liquid effect from between its main lenses to create complex graphic effects LiquidEffectTM. This effect can be used alone or in combination with the main LED matrix. ZONDA 9 FX is a marvel of technology geared for creativity. -
ZONDA 9 WASH is the first luminaire in a new family of products devised for stage lighting, equipped with a high-performance 40-Watt LED source with RGB+W additive colour synthesis. This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 WASH can obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°. ZONDA 9 WASH is a radical luminaire intended for stage lighting in the true sense. The careful colour mixing of the sources allows for perfect colour reproduction. You can control each concentric circle to adjust the size of the emitting surface and the luminaire’s power. A complete library of pre-programmed colours created in collaboration with lighting designers is instantly accessible. A silent ventilation mode was specially developed for this fixture. ZONDA 9 WASH is a marvel of technology geared for creativity. -
This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. DOMINO WASH opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Colour” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin. This new luminaire adopts the complex colour mixing system of HURACÁN WASH, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. DOMINO WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. DOMINO WASH is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. DOMINO WASH has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, DOMINO WASH aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with DOMINO PROFILE and DOMINO LT, DOMINO WASH completes an exceptional trilogy. -
DOMINO LT is the first all-terrain LED luminaire in the « LT » (Long Throw) range designed for intensive outdoor use in long-distance applications requiring high precision. To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL” 225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. DOMINO LT was developed to cope with the most extreme conditions, able to acclimate to all types of environments and endure rapid climate change. For this purpose, DOMINO LT has borrowed from the style and minimalist design of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total accessibility to the luminaire’s internal functions. With its new die-cast aluminium frame, the luminaire uses the same base, reducing its visual footprint to a minimum. For greater efficiency, DOMINO LT has a highly effective next-generation, oversized cooling system fitted with six submersible fans outside its weatherproof enclosure. DOMINO LT adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours (patent pending) and a triple corrector for variable colour temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolour effects. DOMINO LT is a unique luminaire designed to face the most extreme conditions… It is the ultimate tool for stadiums and large arenas. Accessories: ES-RC-L114 Single unit road case
