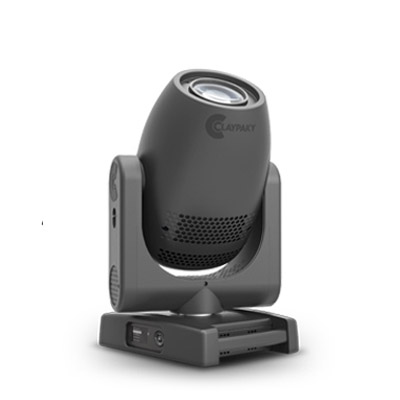

Axcor Profile 400

With the AXCOR PROFILE 400, Claypaky has revolutionized the medium power market, by offering a light which is able to pack all the most advanced lighting, mechanical and electronic features into an extraordinarily compact body: less than 65 cm high!

The Axcor Profile 400 comes in two models:

  • Axcor Profile 400 (CLPLED400): a 16,000 lm, 6500 K, CRI=70 model
  • Axcor Profile 400 HC (CLPLED401): a 12,000 lm, 5600 K CRI=90 model


Description

It has an extraordinarily compact body (65 cm / 25½ inches high) packed with all the most advanced lighting, mechanical and electronic features. These include a professional framing system, an animation wheel, a CMY + linear CTO system, and a high precision mechanical iris.

Its light source is a 300W white LED module designed specifically for this unit. Among the exceptional features, this compact LED light offers are a framing system that works on four focal planes, an effects section with an animation wheel, a complete colour system with linear CTO, and a high precision mechanical iris.

  • Source: 300W White LED Module
  • Versions available:
  • Ø 120mm front lens
  • 5°-43° linear Zoom
  • CMY + Linear CTO
  • One Color Wheel with 6 Colors
  • One Rotating Gobo Wheel with 7 Gobos
  • Rotating 4-facet prism
  • Animation wheel
  • Motorized framing system with 4 focal planes
  • Mechanical Iris
  • Frost filter
  • 16-bit Electronic Dimmer with 4 curves
  • Electronic strobe @25 f/sec.
  • Three different fan ventilation modes (STD – AUTO – SLN)
  • Weight: about 27 Kg (55.11 lbs)

POWER SUPPLIES
AC power input Neutrik PowerCON True
100-240V, 50/60 Hz

INPUT POWER
500 VA @230Vac – 50Hz

LIGHT SOURCE
Source: 300W White LED Module
Versions available:
– CRI: at least 70, CT 6500K (Axcor Profile 400)
– CRI: at least 90, CT 5600K (Axcor Profile 400 HC)

OPTICS
Ø 120mm front lens
5°-43° linear Zoom

COLOUR SYSTEM
CMY + Linear CTO
One Colour Wheel with 6 Colors

FRAMING SYSTEM
Framing System with 4 focal planes
4 Blades that move separately
Smooth, flexible blade movements at variable speed
90° rotation of the entire system, at variable speed

EFFECTS SECTION
One Rotating Gobo Wheel with 7 Interchangeable Gobos
Rotating 4-facet prism ndexable on 540°
Animation wheel
Mechanical Iris
Variable Frost filter
16-bit Electronic Dimmer with 4 curves
Electronic strobe @25 f/sec.

CONTROL AND PROGRAMMING
36 control channels
inputs: DMX 512 – Art-Net
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Display Graphic LCD backlit b/w Display
Pan/Tilt Resolution 16 bit
Gobo Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 poles XLR input and output

BODY
Aluminum and steel structure with plastic covers.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY
PAN range 540°
TILT range 270°

ELECTRONICS
Long life self-charging buffer battery.
Function reset from the lighting desk.
“AUTOTEST” function from menu ARTNET.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Firmware Upgrade with no power.
Firmware upload from another fixture.
Protocols/Functions: RDM, Web Server

SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
Minimum distance of illuminated objects: 3 meters (9’ 10”).
Minimum distance from flammable materials: 0.2 meters (8”).
Max ambient temperature: 40°C (104°F).
Max temperature of the external surface: 90°C (194°F).

WORKING POSITION
Working position: Any.
Hanging system 2x fast-lock omega clamps (1/4 turn) on the
base.
Optional: 48-51mm, max300Kg clamps; Ø 4mm, lenght
680mm safety cable

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
about 27 Kg (59.5 lbs)
