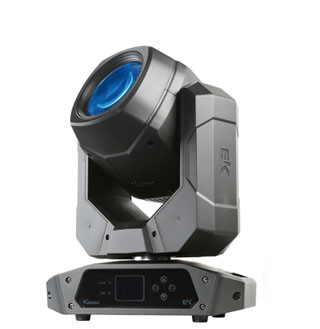

K4 LED Beam

Category: SKU: LEDMOV405

The K4 LED Beam produces tight, solid beams with 17 gobos and 16 bit ultra-smooth pan/tilt movement.



Description

– Tight, solid, consistent beams
– Cool-running whisper-quiet operation
– Nimble 16-bit 540°/270° motorized pan/tilt movement
– DMX, stand-alone, master-slave control
– State-of-the-art optical design for maximum efficiency
– Pan/tilt inverse, display inverse and auto-blackout
– Beam Angle: 2.5°
– Colours: 14 + Open
– Prism: 8-facet, bi-directional, variable-speed rotation
– Gobos: 17 + Open
– Strobe: 1 ~ 30Hz and pulse effects

Photometrics
Light Source 90W 8200K LED
Beam Angle 2.5°
Output 70000 LUX @ 5 meters
Power
Mains 100 – 240 VAC, 50/60 Hz
Consumption 164W
Power connections PowerCon In/Out
Power linking Up to 8 units @ 230V
Key Features
Pan movement 540°
Tilt movement 270°
Color Wheel 14 + Open
Gobo Wheel 17 + Open
Strobe 1 – 30Hz
Prism 8-facet, bi-directional
variable-speed rotation
Control
Protocol DMX 512
DMX channels 11-Dec
Data connections 5-pin & 3-pin XLR In/Out
Dispaly TFT 320 x 240
Physical
Size 305 x 230 x 421mm
Weight 13 kg


LEDMOV405 - K4 Beam Datasheet.pdf    709.47 KB
LEDMOV405 - K4 Beam Manual.pdf    1.58 MB
