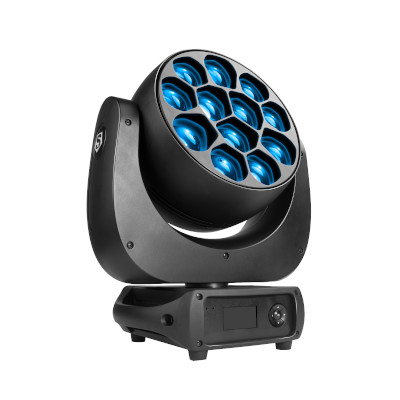

Pluto 4000 wash moving head

The Pluto 4000 wash moving head has 12x40W RGBW LEDs which can be individually controlled for incredible effects.


The Pluto 4000 wash moving head features:

  • 12x40W (RGBW)
  • Pixel Control
  • Perfect colour mixing
  • 12.5kg
  • Rapid & silent Pan & tilt movement
  • Beam angle 4.5°-36°, Field angle 9°-52°
  • DMX 3pin/5pin In/out, RDM, ARTNET

Optical System
Lamp Source 12x40W (RGBW)
Angle 4.5°-36° (field angle 9°-52°)
Electric Specs
Voltage 100-240V AC, 50/60 Hz
Max Power 460W
Driver Current 2.5A
Power Connection Power In and out
Signal socket 3 pin in and out, 5 pin in and out, Art-net
Control System
Pan/tilt rotation 540°/ 270° 8-16bit
Dimmer 0-100% 16Bit
Cooling Forced Convection
Control DMX512, RDM, ARTNET
Display Onboard Control, custom Mode, 0-25Hz Strobe
Dimming 0-100% 16Bit
Con Personality HSIC (13CHS), PERSON1 (13CHS), PERSON2 (57CH), PIXEL(57CHS), CMY (15CHS)
Special Pan/Tilt movement blackout,User-selectable pan/tilt ranges
Size 390x292x411mm
Weight 12.5KG
Casing Flame-retardant plastic (VO)
Colour Black
Work Environment
Ambient Temp 0-45°
IP Rated IP20
LEDMOV540 - Pluto 4000 Wash Datasheet.pdf    932.38 KB
LEDMOV540 - Pluto 4000 Wash MA Fixture
LEDMOV540 - Pluto 4000 Wash Manual.pdf    13.82 MB
